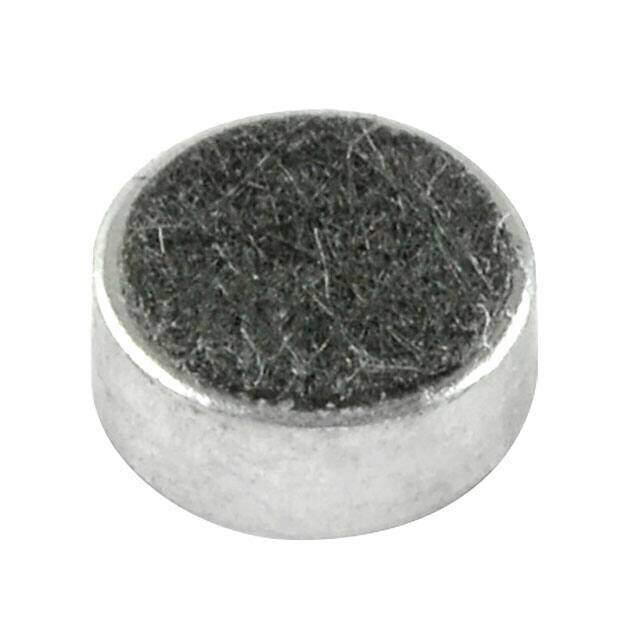

CMC-4015-40T
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANALOG OMNI -40DB 4MM D
PDF
/
Buying Options
Total Price: USD $1.92
Unit Price: USD $1.916834
≥1 USD $1.916834
≥200 USD $0.741789
≥500 USD $0.715531
≥1000 USD $0.703714
Inventory: 1180
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.067 1.70mm
Technical
S/N Ratio 58dB
Port Location Top
Sensitivity -40dB ±3dB @ 94dB SPL
Frequency Range 100Hz~20kHz
Voltage Range 2V~10V
Direction Omnidirectional
Current - Supply 500μA
Impedance 2.2kOhms
Output Type Analog
Voltage - Rated 2V
Type Electret Condenser
Termination Solder Pads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.157Dia 4.00mm
Series CMC
Published 2017
Packaging Bulk
Physical
Shape Circular
Supply Chain
Factory Lead Time 14 Weeks
