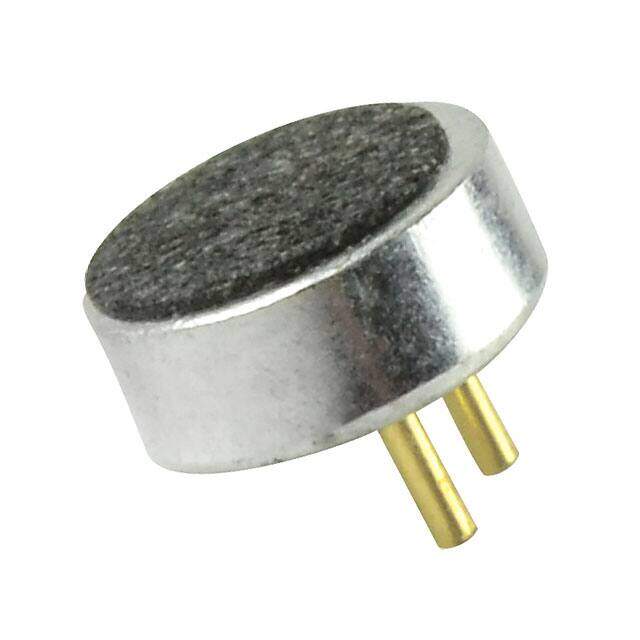

CMC-4015-40P

CUI Devices
RoHS
RoHS RoHS compliant
Package /
Category Audio Products / Microphones
Description 4.0 mm, Omnidirectional, PCB Mount, 2.0 Vdc, Electret Condenser Microphone
PDF
/
Buying Options
Total Price: USD $1.84
Unit Price: USD $1.8392
≥1 USD $1.8392
≥10 USD $1.52768
≥100 USD $1.411872
≥500 USD $1.327744
≥1000 USD $1.246608
≥3000 USD $1.154982
Inventory: 441
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 14 Weeks

Physical

Shape Circular

Technical

Packaging Bulk
Published 2017
Series CMC
Size / Dimension 0.157Dia 4.00mm
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination PC Pins
Type Electret Condenser
Voltage - Rated 2V
Output Type Analog
Impedance 2.2kOhms
Current - Supply 500μA
Direction Omnidirectional
Voltage Range 2V~10V
Frequency Range 100Hz~20kHz
Sensitivity -40dB ±3dB @ 94dB SPL
Port Location Top
S/N Ratio 58dB

Dimensions

Height (Max) 0.067 1.70mm

Compliance

RoHS Status RoHS Compliant
