CMC-4013-SMT-TR
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description

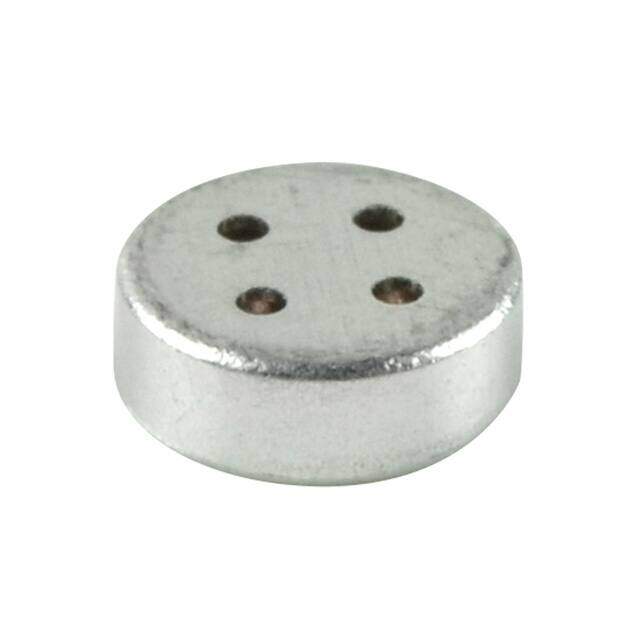

4.0 mm, Omnidirectional, Surface Mount, 2.0 Vdc, Electret Condenser Microphone
PDF
/
Buying Options
Total Price: USD $2.26
Unit Price: USD $2.2616
≥1 USD $2.2616
≥10 USD $1.87704
≥100 USD $1.732544
≥500 USD $1.628
≥1000 USD $1.52724
≥3000 USD $1.413562
Inventory: 1128
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Technical
S/N Ratio 58dB
Port Location Top
Sensitivity -42dB ±3dB @ 94dB SPL
Frequency Range 100Hz~20kHz
Voltage Range 2V~10V
Direction Omnidirectional
Current - Supply 500μA
Impedance 2.2kOhm
Output Type Analog
Voltage - Rated 2V
Type Electret Condenser
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series CMC
Packaging Tape & Reel (TR)
Supply Chain
Factory Lead Time 14 Weeks
