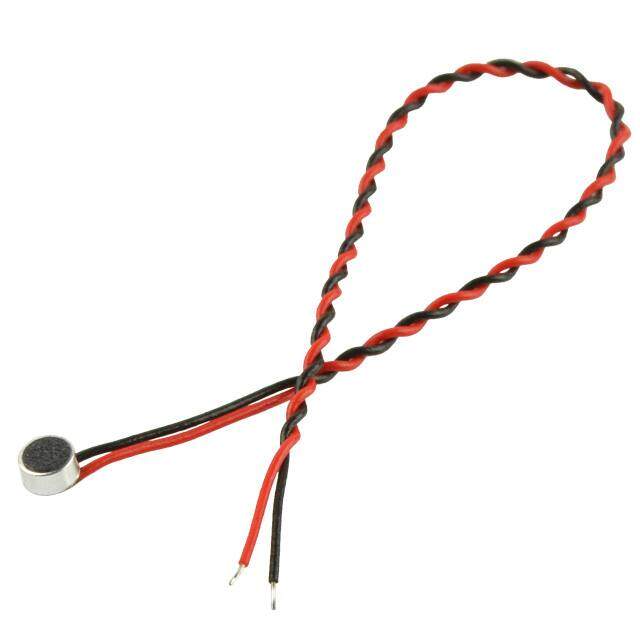

CMC-3015-44L100
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANALOG OMNI -44DB 3MM D
PDF
/
Buying Options
Total Price: USD $1.85
Unit Price: USD $1.848
≥1 USD $1.848
≥10 USD $1.53384
≥100 USD $1.4168
≥500 USD $1.331616
≥1000 USD $1.2496
≥3000 USD $1.163747
Inventory: 508
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.067 1.70mm
Technical
S/N Ratio 57dB
Port Location Top
Sensitivity -44dB ±2dB @ 94dB SPL
Frequency Range 100Hz~20kHz
Voltage Range 2V~10V
Direction Omnidirectional
Current - Supply 500μA
Impedance 2.2kOhm
Output Type Analog
Voltage - Rated 2V
Type Electret Condenser
Termination Wire Leads
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.118 3.00mm Dia
Series CMC
Packaging Bulk
Physical
Shape Circular
Supply Chain
Factory Lead Time 14 Weeks
