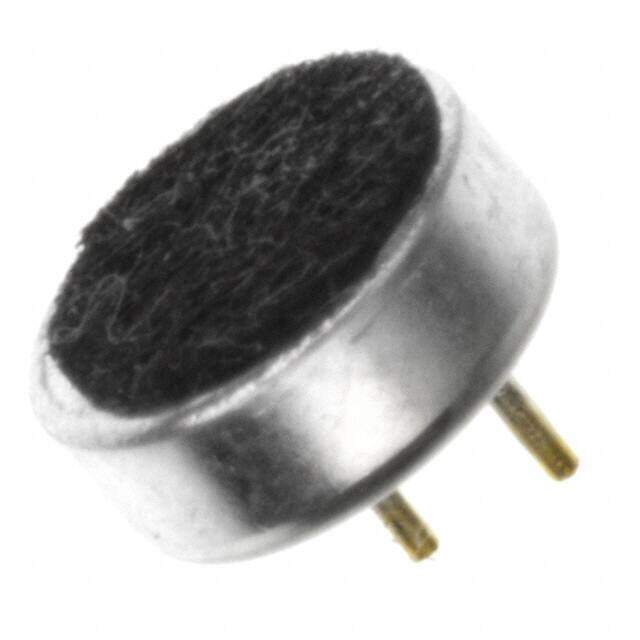

CMC-2242PBL-A
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MIC COND ANALOG OMNI -42DB 6MM D
PDF
/
Buying Options
Total Price: USD $1.43
Unit Price: USD $1.4344
≥1 USD $1.4344
≥10 USD $1.18888
≥100 USD $1.099648
≥500 USD $1.034528
≥1000 USD $0.971608
≥3000 USD $0.905238
Inventory: 1119
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height 2.4mm
Technical
S/N Ratio 58dB
Port Location Top
Sensitivity -42dB ±3dB @ 94dB SPL
Frequency Range 100Hz~20kHz
Voltage Range 2V~10V
Direction Omnidirectional
Impedance 2.2kOhm
Operating Supply Current 500μA
Output Type Analog
Voltage - Rated 2V
Type Electret Condenser
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.236Dia 6.00mm
Published 2011
Packaging Bulk
Physical
Shape Circular
Supply Chain
Factory Lead Time 14 Weeks
Alternative Model
