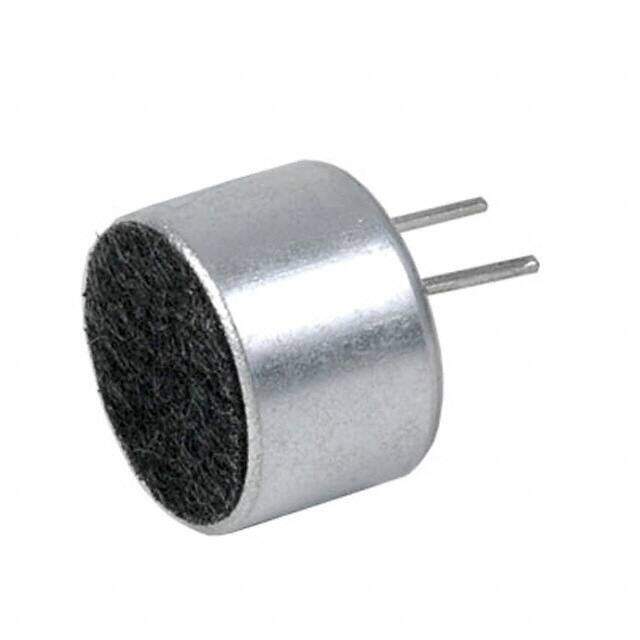

CMA-6542PF
RoHS
RoHS compliant
RoHS compliantPackage /
Category Audio Products / Microphones
Description
MICROPHONE COND ANALOG OMNI
PDF
/
Buying Options
Total Price: USD $0.69
Unit Price: USD $0.6864
≥1 USD $0.6864
≥10 USD $0.57288
≥100 USD $0.530816
≥500 USD $0.500016
≥1000 USD $0.470184
≥3000 USD $0.436744
Inventory: 2165
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status RoHS Compliant
Dimensions
Height (Max) 0.264 6.70mm
Height 6.7mm
Technical
S/N Ratio 60dB
Port Location Top
Sensitivity -42dB ±3dB @ 94dB SPL
Frequency Range 20Hz~20kHz
Voltage Range 4.5V~10V
Direction Omnidirectional
Current - Supply 500μA
Impedance 2.2kOhms
Operating Supply Current 500μA
Output Type Analog
Voltage - Rated 10V
Type Electret Condenser
Termination PC Pins
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Size / Dimension 0.382Dia 9.70mm
Published 2008
Packaging Bulk
Physical
Shape Circular
Supply Chain
Factory Lead Time 14 Weeks
