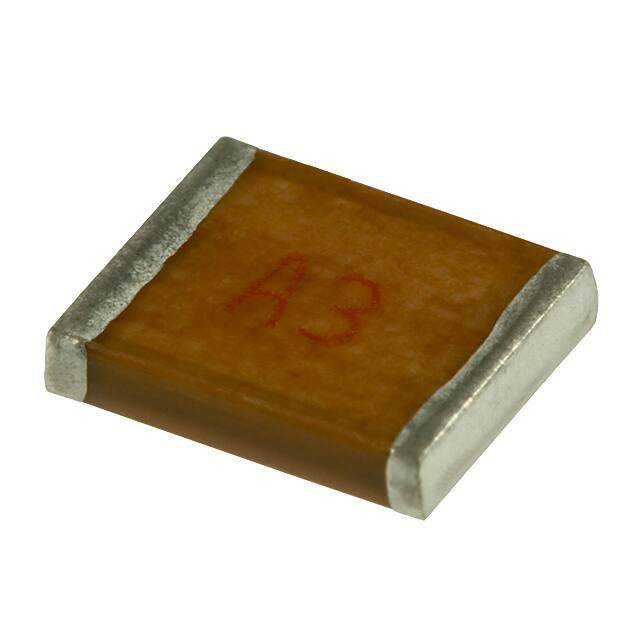

MC22FA202F-TF
RoHS
RoHS compliant
RoHS compliantPackage 2220 (5750 Metric)
Category Capacitors / Mica and PTFE Capacitors
Description
2220 (5750Metric) MC 100V 2000pF ±1% 25ppm/C
PDF
/
Inventory: 9973
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 5mm
Length 5.7mm
Height Seated (Max) 0.079 2.00mm
Height 2mm
Technical
Dissipation Factor 0.1 %
Multilayer Yes
Case Code (Imperial) 2220
Case Code (Metric) 5750
Reach Compliance Code unknown
Packing Method TR, 7 INCH
Voltage - Rated DC 100V
Capacitance 2000pF
HTS Code 8532.29.00.20
Terminal Finish Tin (Sn)
Temperature Coefficient 25 ppm/°C
ECCN Code EAR99
Termination SMD/SMT
Number of Terminations 2
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature RF, High Q, Low Loss
JESD-609 Code e3
Tolerance ±1%
Size / Dimension 0.224Lx0.197W 5.70mmx5.00mm
Series MC
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Weight 480.014126mg
Dielectric Material Mica
Terminal Shape WRAPAROUND
Package / Case 2220 (5750 Metric)
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
