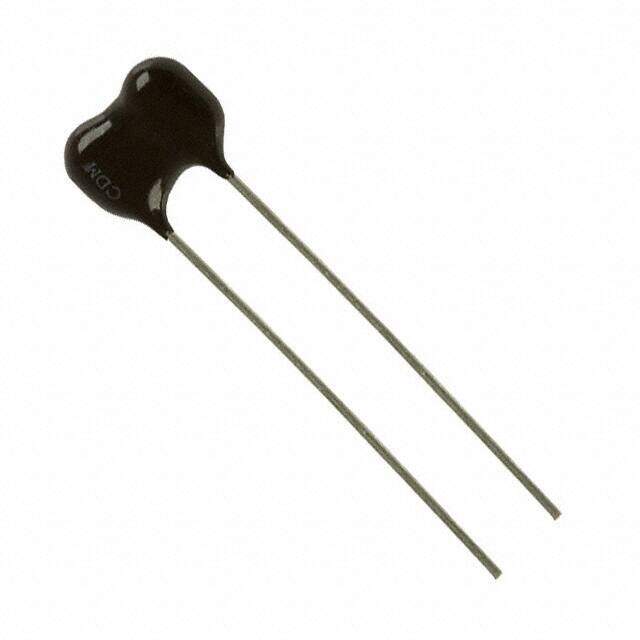

CMR04F271JOCM
RoHS
/
Package Radial
Category Capacitors / Mica and PTFE Capacitors
Description
Radial CMR 300V 270pF ±5% 70ppm/C
PDF
/
Inventory: 8851
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial
Surface Mount NO
Terminal Shape WIRE
Dielectric Material Mica
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series CMR
Size / Dimension 0.390Lx0.220W 9.90mmx5.60mm
Tolerance ±5%
JESD-609 Code e0
Feature General Purpose
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient 70 ppm/°C
Terminal Finish Tin/Lead (Sn60Pb40)
Voltage - Rated 300V
HTS Code 8532.29.00.20
Capacitance 270pF
Reference Standard MIL-PRF-39001
Lead Pitch 3.8mm
Lead Spacing 0.150 3.80mm
Rated (DC) Voltage (URdc) 300V
Size Code 3922
Dimensions
Height 9.7mm
Height Seated (Max) 0.382 9.70mm
Length 9.9mm
Width 5.6mm
Compliance
RoHS Status Non-RoHS Compliant
