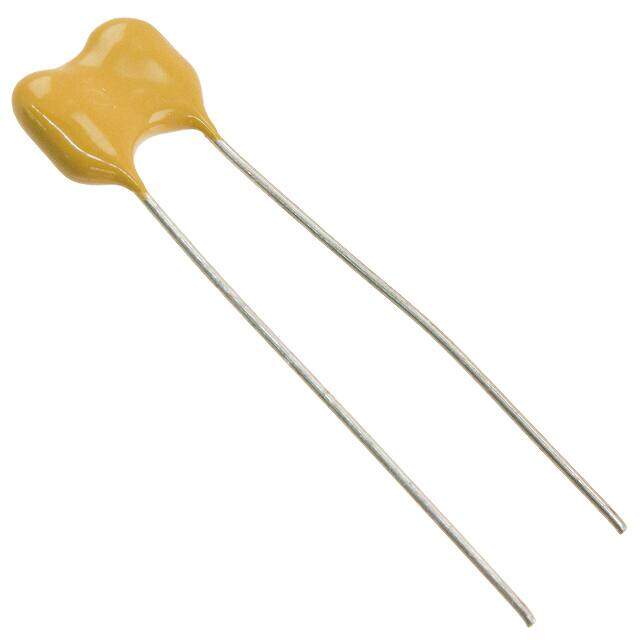

CD15ED750GO3F
RoHS
RoHS compliant
RoHS compliantPackage Radial
Category Capacitors / Mica and PTFE Capacitors
Description
Radial CD15 500V 75pF ±2% -20/+100ppm/Cel ppm/C
PDF
/
Buying Options
Total Price: USD $4.56
Unit Price: USD $4.558389
≥1 USD $4.558389
≥200 USD $1.819679
≥500 USD $1.757973
≥1000 USD $1.727776
Inventory: 6978
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Mounting Type Through Hole
Package / Case Radial
Surface Mount NO
Terminal Shape WIRE
Dielectric Material Mica
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2011
Series CD15
Size / Dimension 0.449Lx0.181W 11.40mmx4.60mm
Tolerance ±2%
JESD-609 Code e3
Feature General Purpose
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Temperature Coefficient -20/+100ppm/Cel ppm/°C
Terminal Finish Tin (Sn) - with Nickel (Ni) barrier
Voltage - Rated 500V
HTS Code 8532.29.00.20
Capacitance 75pF
Packing Method TR
Terminal Pitch 5.9mm
Lead Spacing 0.232 5.90mm
Rated (DC) Voltage (URdc) 500V
Dimensions
Height Seated (Max) 0.358 9.10mm
Length 11.4mm
Width 4.6mm
Compliance
RoHS Status ROHS3 Compliant
