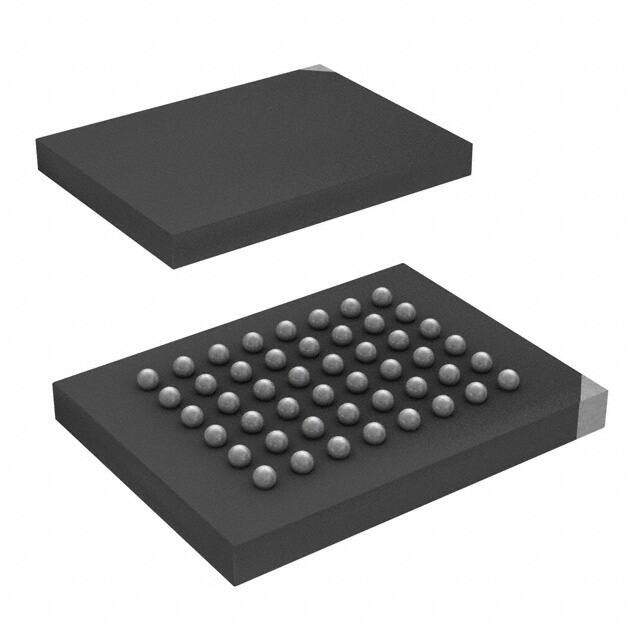

W19B320ABB7H
RoHS
RoHS compliant
RoHS compliantPackage 48-TFBGA
Category Integrated Circuits (ICs) / Memory
Description
3A991.B.1.A Surface Mount Tray 2MX16 ic memory 70GHz 70ns 6mm 0.000005A
PDF
/
Inventory: 5157
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 48-TFBGA
Surface Mount YES
Technical
Operating Temperature -20°C~85°C TA
Packaging Tray
Published 2005
JESD-609 Code e1
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 48
ECCN Code 3A991.B.1.A
Terminal Finish TIN SILVER COPPER
HTS Code 8542.32.00.51
Technology CMOS
Voltage - Supply 2.7V~3.6V
Terminal Position BOTTOM
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 3V
Terminal Pitch 0.8mm
Reach Compliance Code unknown
Frequency 70GHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Pin Count 48
JESD-30 Code R-PBGA-B48
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 3.6V
Power Supplies 3/3.3V
Supply Voltage-Min (Vsup) 2.7V
Memory Size 32Mb 4M x 8 2M x 16
Memory Type Non-Volatile
Operating Mode ASYNCHRONOUS
Supply Current-Max 0.045mA
Memory Format FLASH
Memory Interface Parallel
Organization 2MX16
Memory Width 16
Write Cycle Time - Word, Page 70ns
Standby Current-Max 0.000005A
Memory Density 33554432 bit
Access Time (Max) 70 ns
Programming Voltage 3V
Alternate Memory Width 8
Data Polling YES
Toggle Bit YES
Command User Interface YES
Number of Sectors/Size 863
Sector Size 8K64K
Ready/Busy YES
Boot Block BOTTOM
Common Flash Interface YES
Dimensions
Height Seated (Max) 1.2mm
Length 8mm
Width 6mm
Compliance
RoHS Status ROHS3 Compliant
Lead Free Lead Free
