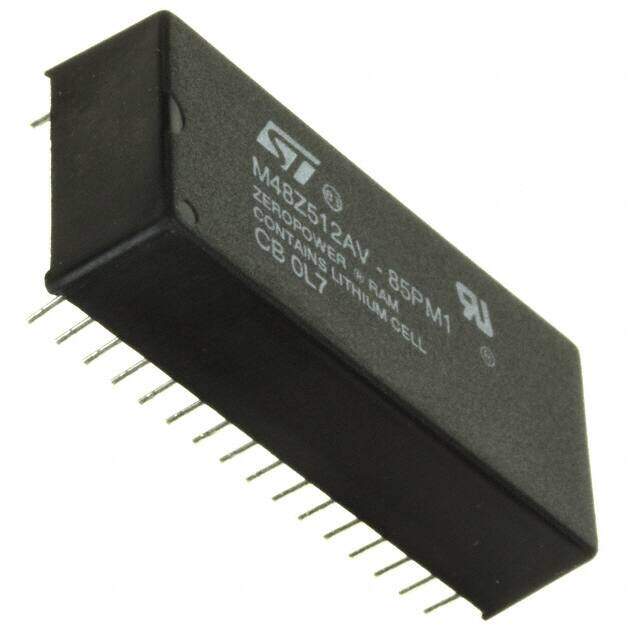

M48Z512AY-70PM1
RoHS
RoHS compliant
RoHS compliantPackage 32-DIP Module (0.600, 15.24mm)
Category Integrated Circuits (ICs) / Memory
Description
3A991.B.2.A Through Hole M48Z512 Tube ic memory 70GHz 70ns 42.8mm 115mA
PDF
/
Buying Options
Total Price: USD $6.46
Unit Price: USD $6.4562
≥1 USD $6.4562
≥10 USD $5.2972
≥100 USD $5.1319
≥500 USD $4.9666
≥1000 USD $4.80035
Inventory: 11003
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Length 42.8mm
Height Seated (Max) 9.52mm
Technical
Output Enable YES
Word Size 8b
Access Time (Max) 70 ns
Standby Current-Max 0.005A
Density 4 Mb
Write Cycle Time - Word, Page 70ns
Memory Width 8
Output Characteristics 3-STATE
Organization 512KX8
Data Bus Width 8b
Memory Interface Parallel
Memory Format NVSRAM
Power Dissipation 1W
Operating Mode ASYNCHRONOUS
Memory Type Non-Volatile
Nominal Supply Current 115mA
Number of Ports 1
Load Capacitance 100pF
Memory Size 4Mb 512K x 8
Power Supplies 5V
Operating Supply Voltage 5V
Qualification Status Not Qualified
Pin Count 32
Base Part Number M48Z512
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Frequency 70GHz
Terminal Pitch 2.54mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Voltage - Supply 4.5V~5.5V
Technology NVSRAM (Non-Volatile SRAM)
Subcategory SRAMs
Additional Feature 10 YEARS OF DATA RETENTION; POWER SUPPLY WRITE PROTECTION; BATTERY BACK-UP
Terminal Finish MATTE TIN
ECCN Code 3A991.B.2.A
Number of Terminations 32
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
JESD-609 Code e3
Packaging Tube
Operating Temperature 0°C~70°C TA
Physical
Number of Pins 32
Package / Case 32-DIP Module (0.600, 15.24mm)
Mounting Type Through Hole
Mount Through Hole
Alternative Model
