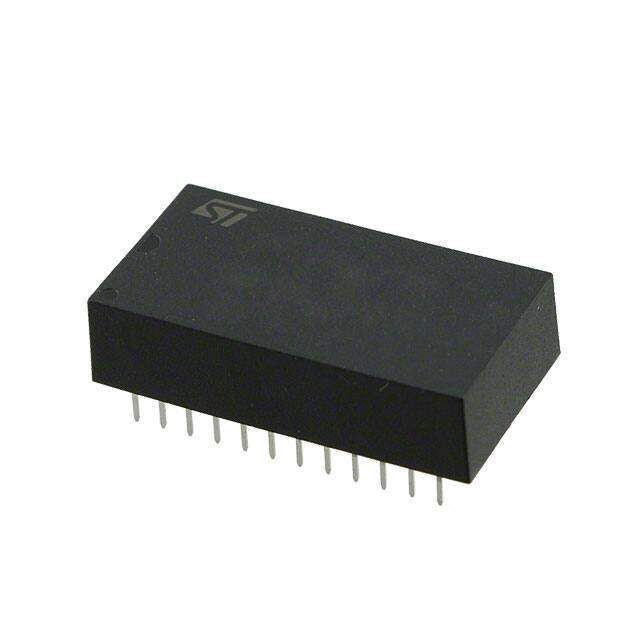

M48Z12-150PC1
RoHS
RoHS compliant
RoHS compliantPackage 24-DIP Module (0.600, 15.24mm)
Category Integrated Circuits (ICs) / Memory
Description
EAR99 Through Hole M48Z12 Tube ic memory 150GHz 150ns 18.34mm 80mA
PDF
/
Buying Options
Total Price: USD $11.62
Unit Price: USD $11.616
≥1 USD $11.616
≥10 USD $10.754225
≥100 USD $10.608083
≥500 USD $10.474675
≥1000 USD $9.179658
≥3000 USD $8.786034
Inventory: 339
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 18.34mm
Length 34.8mm
Height 8.89mm
Technical
Output Enable YES
Word Size 8b
Access Time (Max) 150 ns
Standby Current-Max 0.003A
Density 16 kb
Write Cycle Time - Word, Page 150ns
Output Characteristics 3-STATE
Organization 2KX8
Data Bus Width 8b
Memory Interface Parallel
Memory Format NVSRAM
Memory Type Non-Volatile
Nominal Supply Current 80mA
Number of Ports 1
Operating Supply Current 80mA
Memory Size 16Kb 2K x 8
Power Supplies 5V
Operating Supply Voltage 5V
Pin Count 24
Base Part Number M48Z12
Frequency 150GHz
Terminal Pitch 2.54mm
Supply Voltage 5V
Number of Functions 1
Terminal Position DUAL
Voltage - Supply 4.5V~5.5V
Technology NVSRAM (Non-Volatile SRAM)
Subcategory SRAMs
HTS Code 8542.32.00.41
Additional Feature BATTERY BACK-UP; POWER SUPPLY WRITE PROTECTION
Terminal Finish Matte Tin (Sn)
ECCN Code EAR99
Number of Terminations 24
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
JESD-609 Code e3
Packaging Tube
Operating Temperature 0°C~70°C TA
Physical
Number of Pins 24
Package / Case 24-DIP Module (0.600, 15.24mm)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 25 Weeks
