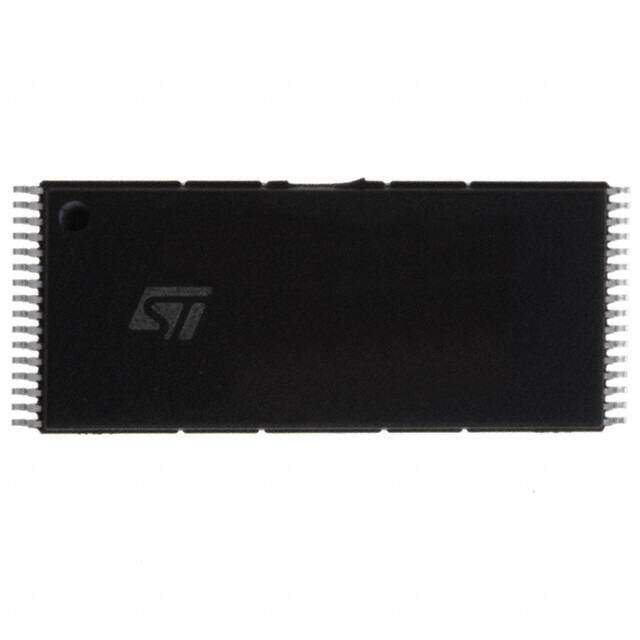

M29W010B90N1
RoHS
RoHS compliant
RoHS compliantPackage 32-TFSOP (0.724, 18.40mm Width)
Category Integrated Circuits (ICs) / Memory
Description
EAR99 Surface Mount M29W010 Tray ic memory 90ns 18.4mm 0.0001A 8b
PDF
/
Buying Options
Total Price: USD $1.49
Unit Price: USD $1.491638
≥1 USD $1.491638
≥10 USD $1.407208
≥100 USD $1.327553
≥500 USD $1.252406
≥1000 USD $1.181509
Inventory: 8279
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 32-TFSOP (0.724, 18.40mm Width)
Surface Mount YES
Number of Pins 32
Technical
Operating Temperature 0°C~70°C TA
Packaging Tray
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 32
ECCN Code EAR99
Terminal Finish TIN LEAD
Technology FLASH - NOR
Voltage - Supply 2.7V~3.6V
Terminal Position DUAL
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number M29W010
Pin Count 32
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 3.6V
Power Supplies 3/3.3V
Supply Voltage-Min (Vsup) 2.7V
Memory Size 1Mb 128K x 8
Memory Type Non-Volatile
Operating Mode ASYNCHRONOUS
Supply Current-Max 0.02mA
Memory Format FLASH
Memory Interface Parallel
Data Bus Width 8b
Organization 128KX8
Memory Width 8
Write Cycle Time - Word, Page 90ns
Standby Current-Max 0.0001A
Memory Density 1048576 bit
Access Time (Max) 90 ns
Programming Voltage 2.7V
Endurance 100000 Write/Erase Cycles
Data Polling YES
Toggle Bit YES
Command User Interface YES
Number of Sectors/Size 8
Sector Size 16K
Dimensions
Height Seated (Max) 1.2mm
Length 18.4mm
Compliance
RoHS Status ROHS3 Compliant
