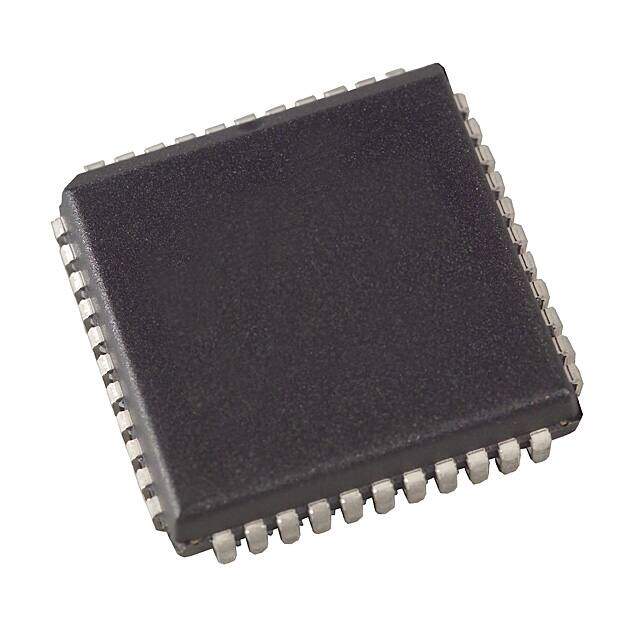

M27C4002-90C1
RoHS
RoHS compliant
RoHS compliantPackage 44-LCC (J-Lead)
Category Integrated Circuits (ICs) / Memory
Description
EAR99 Surface Mount M27C4002 Tube ic memory 90ns 16.586mm 0.0001A 4194304bit
PDF
/
Inventory: 1660
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 44-LCC (J-Lead)
Surface Mount YES
Number of Pins 44
Technical
Operating Temperature 0°C~70°C TA
Packaging Tube
JESD-609 Code e3
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 44
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
HTS Code 8542.32.00.71
Subcategory OTP ROMs
Technology EPROM - OTP
Voltage - Supply 4.5V~5.5V
Terminal Position QUAD
Peak Reflow Temperature (Cel) 245
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 1.27mm
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number M27C4002
Pin Count 44
Qualification Status Not Qualified
Operating Supply Voltage 5V
Power Supplies 5V
Memory Size 4Mb 256K x 16
Memory Type Non-Volatile
Operating Mode ASYNCHRONOUS
Supply Current-Max 0.07mA
Access Time 90ns
Memory Format EPROM
Memory Interface Parallel
Organization 256KX16
Output Characteristics 3-STATE
Memory Width 16
Standby Current-Max 0.0001A
Memory Density 4194304 bit
I/O Type COMMON
Dimensions
Height Seated (Max) 4.57mm
Length 16.586mm
Width 16.586mm
Compliance
RoHS Status ROHS3 Compliant
