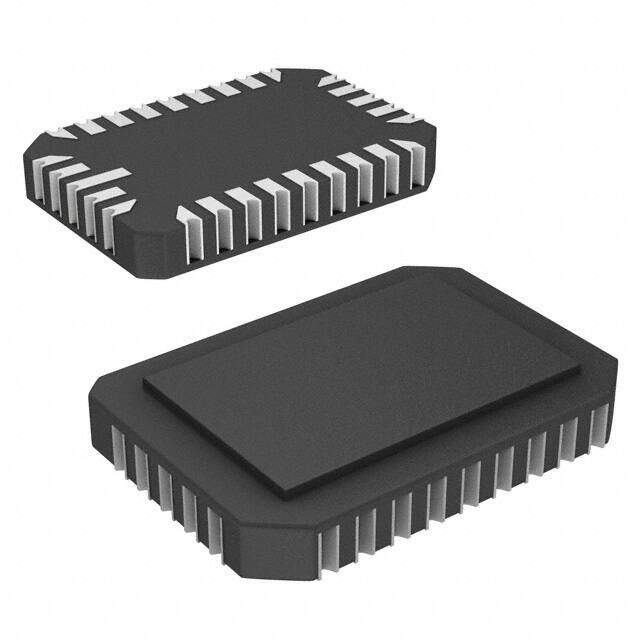

STK12C68-L45I
RoHS
/
Package 28-LCC
Category Integrated Circuits (ICs) / Memory
Description
R-CQCC-N28 Surface Mount Tube 8KX8 ic memory 45ns 8.89mm 65536bit 4.5V
PDF
/
Buying Options
Total Price: USD $1906.68
Unit Price: USD $1906.6784
≥1 USD $1906.6784
Inventory: 97
Minimum: 1
-
+
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 28-LCC
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tube
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 28
Terminal Finish TIN LEAD
Technology NVSRAM (Non-Volatile SRAM)
Voltage - Supply 4.5V~5.5V
Terminal Position QUAD
Peak Reflow Temperature (Cel) 240
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 1.27mm
Reach Compliance Code unknown
Time@Peak Reflow Temperature-Max (s) 30
Pin Count 28
JESD-30 Code R-CQCC-N28
Qualification Status COMMERCIAL
Supply Voltage-Max (Vsup) 5.5V
Supply Voltage-Min (Vsup) 4.5V
Memory Size 64Kb 8K x 8
Memory Type Non-Volatile
Operating Mode ASYNCHRONOUS
Memory Format NVSRAM
Memory Interface Parallel
Organization 8KX8
Memory Width 8
Write Cycle Time - Word, Page 45ns
Memory Density 65536 bit
Access Time (Max) 45 ns
Dimensions
Height Seated (Max) 2.29mm
Length 13.97mm
Width 8.89mm
Compliance
RoHS Status Non-RoHS Compliant
