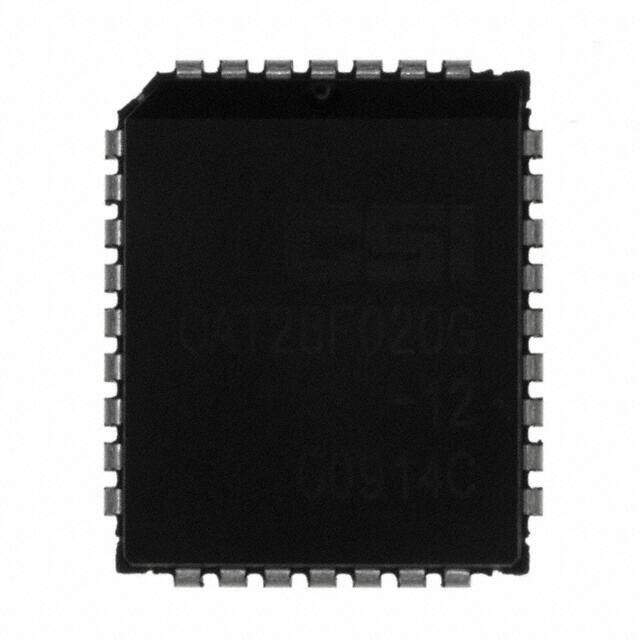

CAT28F001GI-12TT
RoHS
RoHS compliant
RoHS compliantPackage 32-LCC (J-Lead)
Category Integrated Circuits (ICs) / Memory
Description
EAR99 Surface Mount CAT28F001 Tape & Reel (TR) ic memory 120ns 11.43mm 0.000001A 1048576bit
PDF
/
Inventory: 1499
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 32-LCC (J-Lead)
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2007
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 32
ECCN Code EAR99
Terminal Finish Tin (Sn)
Additional Feature TOP BOOT BLOCK
HTS Code 8542.32.00.51
Technology CMOS
Voltage - Supply 4.5V~5.5V
Terminal Position QUAD
Peak Reflow Temperature (Cel) 245
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 1.27mm
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number CAT28F001
Pin Count 32
JESD-30 Code R-PQCC-J32
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 5.5V
Power Supplies 5V
Supply Voltage-Min (Vsup) 4.5V
Memory Size 1Mb 128K x 8
Memory Type Non-Volatile
Operating Mode ASYNCHRONOUS
Supply Current-Max 0.03mA
Memory Format FLASH
Memory Interface Parallel
Organization 128KX8
Memory Width 8
Write Cycle Time - Word, Page 120ns
Standby Current-Max 0.000001A
Memory Density 1048576 bit
Access Time (Max) 120 ns
Programming Voltage 12V
Endurance 100000 Write/Erase Cycles
Data Polling NO
Toggle Bit NO
Command User Interface YES
Boot Block TOP
Sector Size 8K4K112K
Number of Sectors/Size 121
Compliance
RoHS Status RoHS Compliant
Dimensions
Width 11.43mm
Length 13.97mm
Height Seated (Max) 3.55mm
