MT9VDDT3272AG-335G4
RoHS
/
Package 184-UDIMM
Category Memory Cards, Modules / Memory - Modules
Description

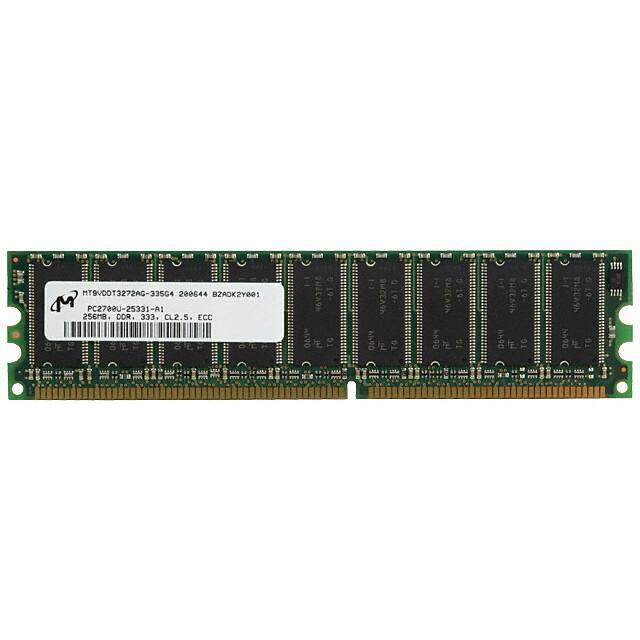

MODULE DDR SDRAM 256MB 184UDIMM
PDF
/
Inventory: 6372
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Dimensions
Height 31.8mm
Technical
I/O Type COMMON
Standby Current-Max 0.036A
Memory Width 72
Output Characteristics 3-STATE
Organization 32MX72
Access Time 167 μs
Memory Type DDR SDRAM
Memory Size 256MB
Min Supply Voltage 2.3V
Max Supply Voltage 2.7V
Temperature Grade COMMERCIAL
Number of Elements 9
Operating Supply Voltage 2.5V
Qualification Status Not Qualified
Frequency 167MHz
Reach Compliance Code not_compliant
Terminal Pitch 1.27mm
Supply Voltage 2.5V
Terminal Form NO LEAD
Terminal Position DUAL
Technology CMOS
Subcategory Other Memory ICs
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Number of Terminations 184
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
Pbfree Code no
Published 2002
Packaging Bulk
Physical
Number of Pins 184
Package / Case 184-UDIMM
Mount Socket
