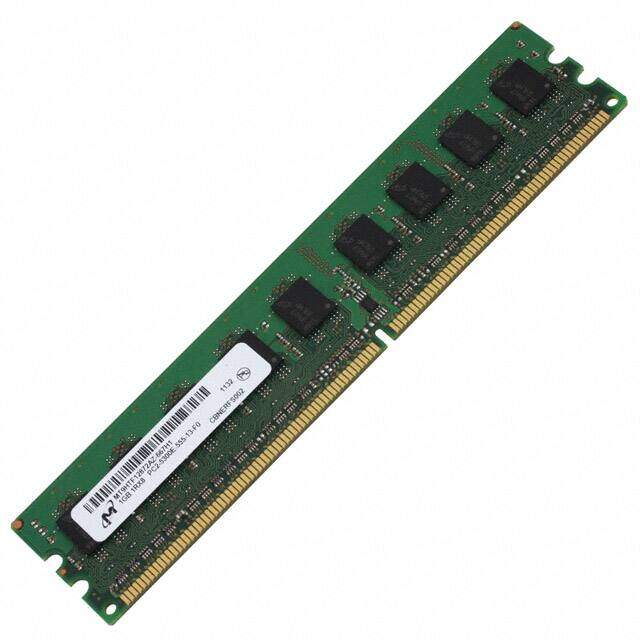

MT9HTF12872AZ-667H1
RoHS
RoHS compliant
RoHS compliantPackage 240-UDIMM
Category Memory Cards, Modules / Memory - Modules
Description
MODULE DDR2 SDRAM 1GB 240UDIMM
PDF
/
Inventory: 7605
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Technical
I/O Type COMMON
Access Time (Max) 0.45 ns
Max Frequency 667MHz
Standby Current-Max 0.063A
Memory Width 72
Output Characteristics 3-STATE
Organization 128MX72
Supply Current-Max 2.52mA
Clock Frequency 333MHz
Memory Type DDR2 SDRAM
Speed 667MT/s
Memory Size 1GB
Min Supply Voltage 1.7V
Max Supply Voltage 1.9V
Temperature Grade COMMERCIAL
Number of Elements 9
Operating Supply Voltage 1.8V
Qualification Status Not Qualified
Time@Peak Reflow Temperature-Max (s) 30
Terminal Pitch 1mm
Supply Voltage 1.8V
Peak Reflow Temperature (Cel) 260
Terminal Form NO LEAD
Terminal Position DUAL
Technology CMOS
Subcategory Other Memory ICs
Min Operating Temperature 0°C
Max Operating Temperature 70°C
Terminal Finish MATTE TIN
Number of Terminations 240
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Published 2010
Physical
Number of Pins 240
Package / Case 240-UDIMM
Mount Socket
