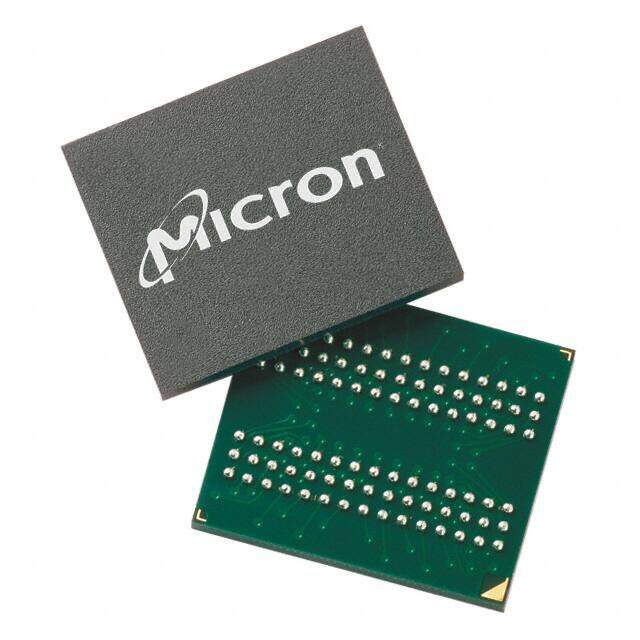

MT46H16M32LFCM-75 IT
RoHS
RoHS compliant
RoHS compliantPackage 90-VFBGA
Category Integrated Circuits (ICs) / Memory
Description
EAR99 Surface Mount MT46H16M32 Tray ic memory 133MHz 6ns 10mm 0.00001A
PDF
/
Inventory: 1635
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number MT46H16M32
Pin Count 90
Supply Voltage 1.8V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position BOTTOM
Voltage - Supply 1.7V~1.95V
Technology SDRAM - Mobile LPDDR
HTS Code 8542.32.00.28
Additional Feature AUTO/SELF REFRESH
Terminal Finish TIN SILVER COPPER
ECCN Code EAR99
Number of Terminations 90
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e1
Published 2009
Packaging Tray
Operating Temperature -40°C~85°C TA
Interleaved Burst Length 248
Sequential Burst Length 248
Refresh Cycles 8192
I/O Type COMMON
Memory Density 536870912 bit
Standby Current-Max 0.00001A
Write Cycle Time - Word, Page 15ns
Memory Width 32
Output Characteristics 3-STATE
Organization 16MX32
Memory Interface Parallel
Memory Format DRAM
Access Time 6ns
Supply Current-Max 0.12mA
Clock Frequency 133MHz
Operating Mode SYNCHRONOUS
Memory Type Volatile
Number of Ports 1
Memory Size 512Mb 16M x 32
Supply Voltage-Min (Vsup) 1.7V
Power Supplies 1.8V
Supply Voltage-Max (Vsup) 1.95V
Qualification Status Not Qualified
JESD-30 Code R-PBGA-B90
Physical
Surface Mount YES
Package / Case 90-VFBGA
Mounting Type Surface Mount
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 10mm
Length 13mm
Height Seated (Max) 1mm
