MT41K256M8DA-125 AIT:K
RoHS
RoHS compliant

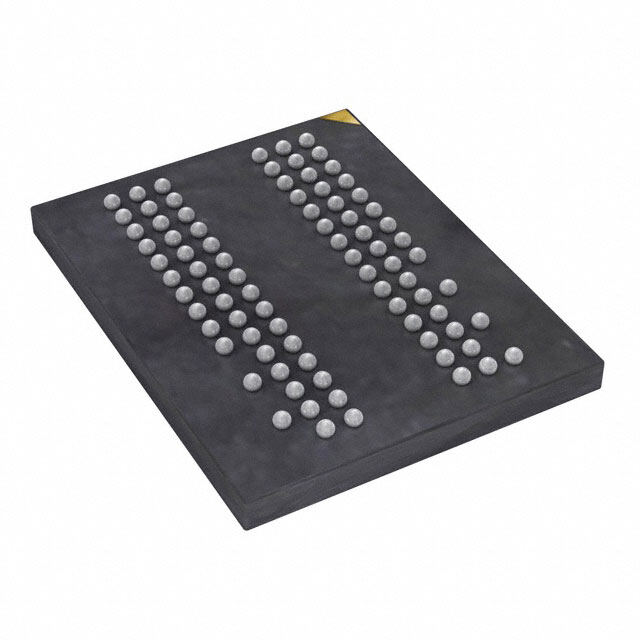

RoHS compliantPackage 78-TFBGA
Category Integrated Circuits (ICs) / Memory
Description
Active 3-STATE 2016 AEC-Q100 DRAM Memory -40C~95C TC 1.283V 2147483648bit 0.012A
PDF
/
Buying Options
Total Price: USD $19.36
Unit Price: USD $19.3553
≥1 USD $19.3553
≥10 USD $15.88115
≥100 USD $15.38525
≥500 USD $14.8884
≥1000 USD $14.3925
Inventory: 6102
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Surface Mount
Package / Case 78-TFBGA
Surface Mount YES
Technical
Operating Temperature -40°C~95°C TC
Packaging Tray
Published 2016
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 78
Additional Feature AUTO/SELF REFRESH
Technology SDRAM - DDR3L
Voltage - Supply 1.283V~1.45V
Terminal Position BOTTOM
Number of Functions 1
Supply Voltage 1.35V
Terminal Pitch 0.8mm
Base Part Number MT41K256M8
JESD-30 Code R-PBGA-B78
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 1.45V
Power Supplies 1.35V
Supply Voltage-Min (Vsup) 1.283V
Memory Size 2Gb 256M x 8
Number of Ports 1
Memory Type Volatile
Operating Mode SYNCHRONOUS
Clock Frequency 800MHz
Supply Current-Max 0.195mA
Access Time 13.75ns
Memory Format DRAM
Memory Interface Parallel
Organization 256MX8
Output Characteristics 3-STATE
Memory Width 8
Standby Current-Max 0.012A
Memory Density 2147483648 bit
Screening Level AEC-Q100
I/O Type COMMON
Refresh Cycles 8192
Sequential Burst Length 8
Interleaved Burst Length 8
Dimensions
Height Seated (Max) 1.2mm
Length 10.5mm
Width 8mm
Compliance
RoHS Status ROHS3 Compliant
