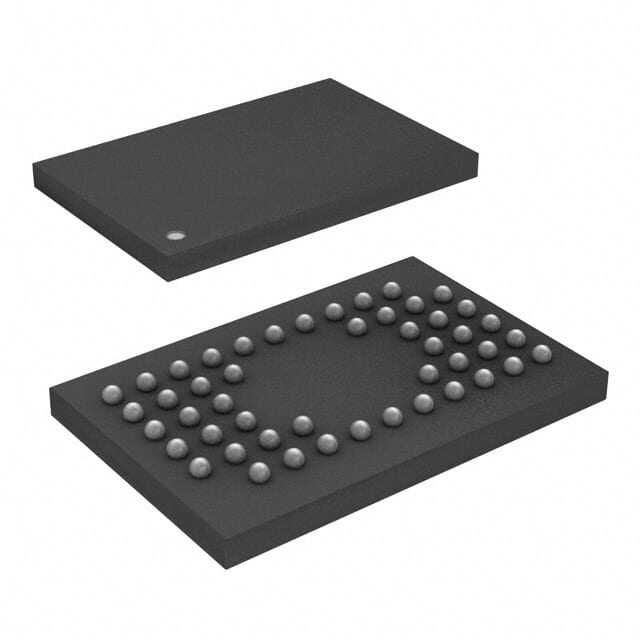

SST39WF400A-90-4I-M1QE image
Favorite
SST39WF400A-90-4I-M1QE image
Favorite

SST39WF400A-90-4I-M1QE

Microchip Technology
RoHS
RoHS RoHS compliant
Package 48-WFBGA
Category Integrated Circuits (ICs) / Memory
Description EAR99 Surface Mount SST39WF400A Tray ic memory 90ns 6mm 4Mb 1.7V
PDF
/
Inventory: 1214
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Technical

Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 40
Base Part Number SST39WF400A
Pin Count 48
Operating Supply Voltage 1.8V
Supply Voltage-Max (Vsup) 1.95V
Supply Voltage-Min (Vsup) 1.7V
Memory Size 4Mb 256K x 16
Memory Type Non-Volatile
Access Time 90ns
Memory Format FLASH
Memory Interface Parallel
Data Bus Width 16b
Supply Voltage 1.8V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position BOTTOM
Voltage - Supply 1.65V~1.95V
Technology CMOS
HTS Code 8542.32.00.51
Terminal Finish TIN SILVER COPPER
ECCN Code EAR99
Number of Terminations 48
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
JESD-609 Code e1
Series SST39 MPF?
Published 2000
Packaging Tray
Operating Temperature -40°C~85°C TA
Density 4 Mb
Address Bus Width 18b
Write Cycle Time - Word, Page 40μs
Memory Width 16
Organization 256KX16

Physical

Number of Pins 48
Surface Mount YES
Package / Case 48-WFBGA
Mounting Type Surface Mount

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Length 6mm
Height Seated (Max) 0.73mm
