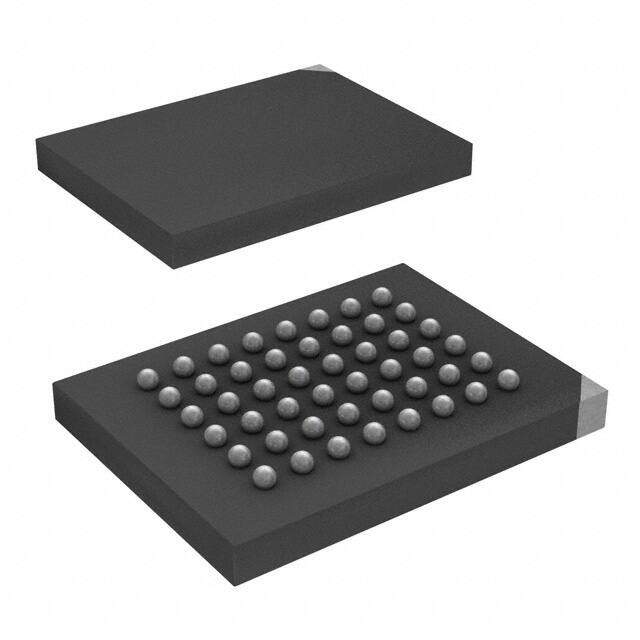

SST39VF802C-70-4C-B3KE
RoHS
RoHS compliant
RoHS compliantPackage 48-TFBGA
Category Integrated Circuits (ICs) / Memory
Description
3A991.B.1.A Surface Mount SST39VF802C Tray ic memory 5MHz 70ns 6mm 18mA
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.584
≥1 USD $1.584
Inventory: 92
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Dimensions
Width 6mm
Length 8mm
Height 750μm
Technical
Common Flash Interface YES
Boot Block TOP
Ready/Busy YES
Sector Size 2K
Number of Sectors/Size 256
Command User Interface YES
Toggle Bit YES
Data Polling YES
Programming Voltage 2.7V
Word Size 16b
Sync/Async Asynchronous
Standby Current-Max 0.00002A
Density 8 Mb
Address Bus Width 19b
Write Cycle Time - Word, Page 10μs
Organization 512KX16
Data Bus Width 16b
Memory Interface Parallel
Memory Format FLASH
Access Time 70ns
Memory Type Non-Volatile
Nominal Supply Current 18mA
Memory Size 8Mb 512K x 16
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 3.6V
Operating Supply Voltage 3.3V
Pin Count 48
Base Part Number SST39VF802C
Time@Peak Reflow Temperature-Max (s) 40
Frequency 5MHz
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position BOTTOM
Voltage - Supply 2.7V~3.6V
Technology CMOS
HTS Code 8542.32.00.51
Additional Feature TOP BOOT BLOCK
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code 3A991.B.1.A
Number of Terminations 48
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
JESD-609 Code e1
Series SST39 MPF?
Published 2011
Packaging Tray
Operating Temperature 0°C~70°C TA
Physical
Number of Pins 48
Package / Case 48-TFBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 7 Weeks
