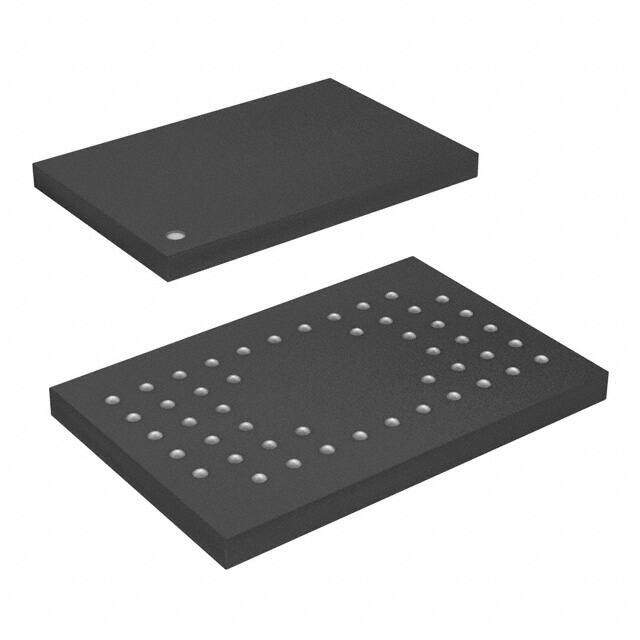

SST39VF400A-70-4I-C1QE
RoHS
RoHS compliant
RoHS compliantPackage 48-UFLGA
Category Integrated Circuits (ICs) / Memory
Description
EAR99 Surface Mount SST39VF400A Tray ic memory 70ns 6mm 30mA 4Mb
PDF
/
Inventory: 1178
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Radiation Hardening No
Dimensions
Length 6mm
Height Seated (Max) 0.52mm
Technical
Common Flash Interface YES
Sector Size 2K
Number of Sectors/Size 128
Command User Interface YES
Toggle Bit YES
Data Polling YES
Programming Voltage 2.7V
Word Size 16b
Sync/Async Asynchronous
Standby Current-Max 0.00002A
Density 4 Mb
Address Bus Width 18b
Write Cycle Time - Word, Page 20μs
Memory Width 16
Organization 256KX16
Data Bus Width 16b
Memory Interface Parallel
Memory Format FLASH
Access Time 70ns
Memory Type Non-Volatile
Nominal Supply Current 30mA
Memory Size 4Mb 256K x 16
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 3.6V
Operating Supply Voltage 3.3V
Pin Count 48
Base Part Number SST39VF400A
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position BOTTOM
Voltage - Supply 2.7V~3.6V
Technology CMOS
HTS Code 8542.32.00.51
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
ECCN Code EAR99
Number of Terminations 48
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e1
Series SST39 MPF?
Published 2000
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 48
Surface Mount YES
Package / Case 48-UFLGA
Mounting Type Surface Mount
