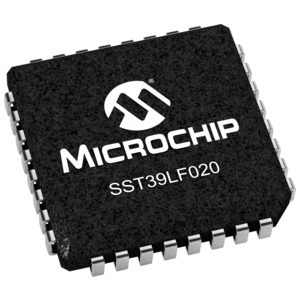

SST39LF020-55-4C-NHE-T image
Favorite
SST39LF020-55-4C-NHE-T image
Favorite

SST39LF020-55-4C-NHE-T

Microchip Technology
RoHS
RoHS RoHS compliant
Package 32-LCC (J-Lead)
Category Integrated Circuits (ICs) / Memory
Description R-PQCC-J32 Surface Mount Tape & Reel (TR) 256KX8 ic memory 55ns 11.43mm 2097152bit 3V
PDF
/
Inventory: 959
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 12 Weeks

Physical

Mounting Type Surface Mount
Package / Case 32-LCC (J-Lead)
Surface Mount YES

Technical

Operating Temperature 0°C~70°C TA
Packaging Tape & Reel (TR)
Series SST39 MPF?
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 32
Technology FLASH - NOR
Voltage - Supply 3V~3.6V
Terminal Position QUAD
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 1.27mm
JESD-30 Code R-PQCC-J32
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 3V
Memory Size 2Mb 256K x 8
Memory Type Non-Volatile
Operating Mode ASYNCHRONOUS
Access Time 55ns
Memory Format FLASH
Memory Interface Parallel
Organization 256KX8
Memory Width 8
Write Cycle Time - Word, Page 20μs
Memory Density 2097152 bit
Programming Voltage 3V

Dimensions

Height Seated (Max) 3.556mm
Length 13.97mm
Width 11.43mm

Compliance

RoHS Status ROHS3 Compliant
