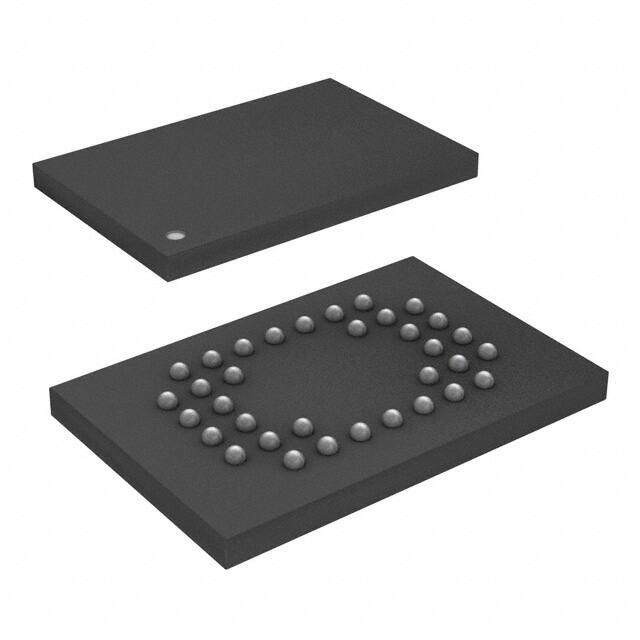

SST39LF020-45-4C-MME image
Favorite
SST39LF020-45-4C-MME image
Favorite

SST39LF020-45-4C-MME

Microchip Technology
RoHS
RoHS RoHS compliant
Package 34-WFBGA
Category Integrated Circuits (ICs) / Memory
Description EAR99 Surface Mount SST39LF020 Tray ic memory 45ns 6mm 20mA 2Mb
PDF
/
Inventory: 1404
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Length 6mm
Height Seated (Max) 0.73mm

Technical

Sector Size 4K
Number of Sectors/Size 64
Command User Interface YES
Toggle Bit YES
Data Polling YES
Programming Voltage 3V
Word Size 8b
Sync/Async Asynchronous
Standby Current-Max 0.000015A
Density 2 Mb
Address Bus Width 18b
Write Cycle Time - Word, Page 20μs
Memory Width 8
Organization 256KX8
Data Bus Width 8b
Memory Interface Parallel
Memory Format FLASH
Access Time 45ns
Memory Type Non-Volatile
Nominal Supply Current 20mA
Memory Size 2Mb 256K x 8
Supply Voltage-Min (Vsup) 3V
Supply Voltage-Max (Vsup) 3.6V
Operating Supply Voltage 3.3V
Pin Count 34
Base Part Number SST39LF020
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position BOTTOM
Voltage - Supply 3V~3.6V
Technology CMOS
HTS Code 8542.32.00.51
Terminal Finish TIN SILVER COPPER
ECCN Code EAR99
Number of Terminations 34
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e1
Series SST39 MPF?
Published 2010
Packaging Tray
Operating Temperature 0°C~70°C TA

Physical

Number of Pins 34
Surface Mount YES
Package / Case 34-WFBGA
Mounting Type Surface Mount
