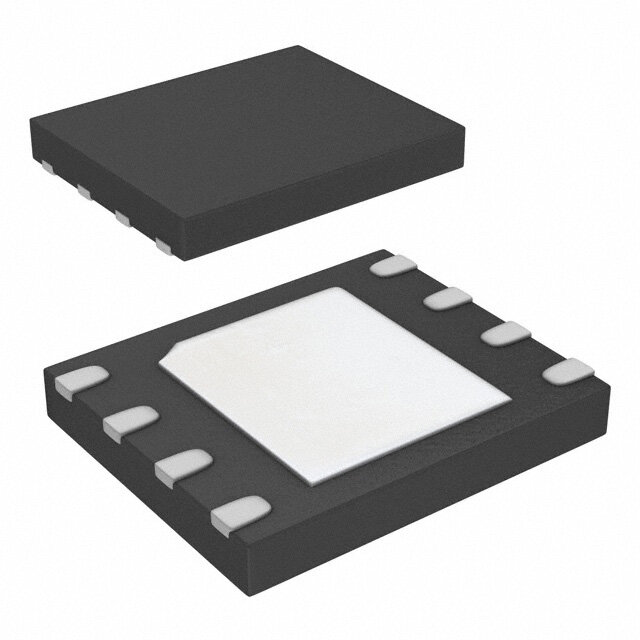

SST25VF080B-50-4C-QAF image
Favorite
SST25VF080B-50-4C-QAF image
Favorite

SST25VF080B-50-4C-QAF

Microchip Technology
RoHS
RoHS RoHS compliant
Package 8-WDFN Exposed Pad
Category Integrated Circuits (ICs) / Memory
Description EAR99 Surface Mount SST25VF080B Tube ic memory 50MHz 8ns 5mm 0.00002A
PDF
/
Buying Options
Total Price: USD $1.48
Unit Price: USD $1.4784
≥1 USD $1.4784
≥10 USD $1.432288
≥100 USD $1.3596
Inventory: 1587
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant

Dimensions

Width 5mm
Length 6mm
Height 750μm

Technical

Write Protection HARDWARE/SOFTWARE
Data Retention Time-Min 100
Endurance 100000 Write/Erase Cycles
Serial Bus Type SPI
Programming Voltage 2.7V
Standby Current-Max 0.00002A
Density 8 Mb
Address Bus Width 1b
Write Cycle Time - Word, Page 10μs
Data Bus Width 8b
Memory Interface SPI
Memory Format FLASH
Access Time 8 ns
Supply Current-Max 0.03mA
Clock Frequency 50MHz
Operating Mode SYNCHRONOUS
Memory Type Non-Volatile
Memory Size 8Mb 1M x 8
Interface SPI, Serial
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 3.6V
Operating Supply Voltage 3.3V
Qualification Status Not Qualified
Pin Count 8
Base Part Number SST25VF080B
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 1.27mm
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Voltage - Supply 2.7V~3.6V
Technology CMOS
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series SST25
Published 2010
Packaging Tube
Operating Temperature 0°C~70°C TA

Physical

Number of Pins 8
Package / Case 8-WDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Gold

Supply Chain

Factory Lead Time 3 Weeks
