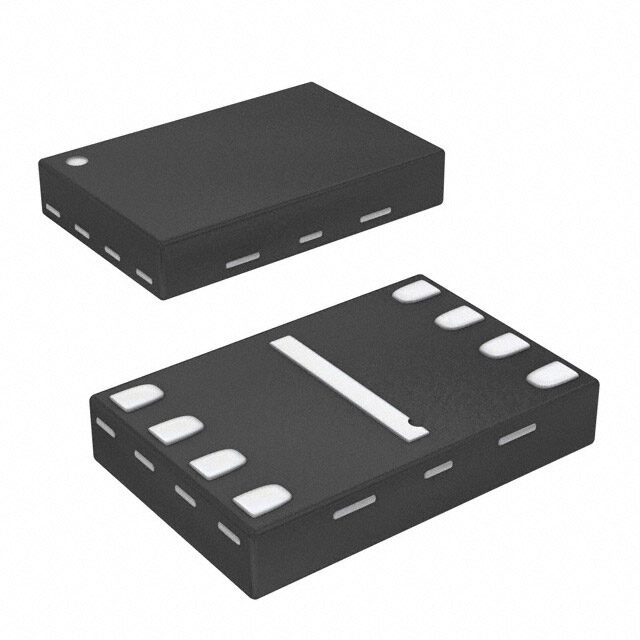

SST25PF040CT-40I/NP
RoHS
RoHS compliant
RoHS compliantPackage 8-UFDFN Exposed Pad
Category Integrated Circuits (ICs) / Memory
Description
R-PDSO-N8 Surface Mount SST25PF040C Tape & Reel (TR) ic memory 40MHz 5ms 2mm 0.00001A
PDF
/
Buying Options
Total Price: USD $1.99
Unit Price: USD $1.9912
≥1 USD $1.9912
≥10 USD $1.634
≥100 USD $1.5827
≥500 USD $1.5314
≥1000 USD $1.48105
Inventory: 3688
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 2mm
Length 3mm
Height Seated (Max) 0.6mm
Technical
Reverse Pinout NO
Write Protection HARDWARE/SOFTWARE
Data Retention Time-Min 20
Endurance 100000 Write/Erase Cycles
Serial Bus Type SPI
Programming Voltage 3.3V
Parallel/Serial SERIAL
Memory Density 4194304 bit
Standby Current-Max 0.00001A
Write Cycle Time - Word, Page 5ms
Memory Width 1
Organization 4MX1
Memory Interface SPI
Memory Format FLASH
Supply Current-Max 0.015mA
Clock Frequency 40MHz
Operating Mode SYNCHRONOUS
Memory Type Non-Volatile
Memory Size 4Mb 512K x 8
Supply Voltage-Min (Vsup) 2.3V
Supply Voltage-Max (Vsup) 3.6V
JESD-30 Code R-PDSO-N8
Base Part Number SST25PF040C
Terminal Pitch 0.5mm
Supply Voltage 3.3V
Number of Functions 1
Terminal Position DUAL
Voltage - Supply 2.3V~3.6V
Technology CMOS
Number of Terminations 8
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Series SST25
Published 2016
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 8-UFDFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 8 Weeks
