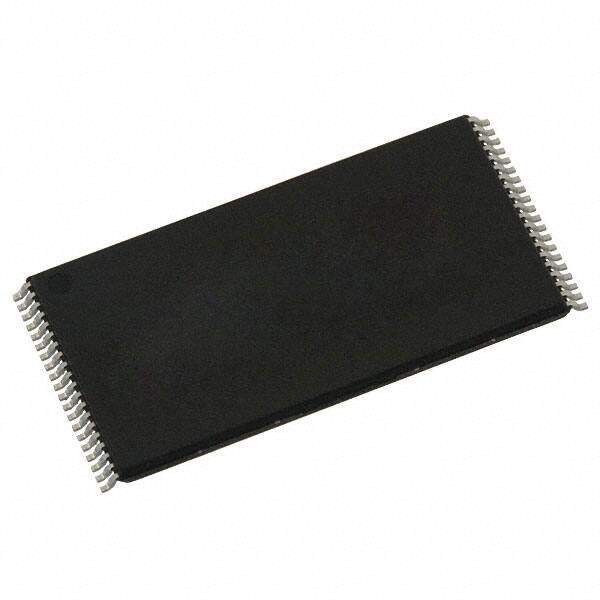

AT45CS1282-TC
RoHS
/
Package 40-TFSOP (0.724, 18.40mm Width)
Category Integrated Circuits (ICs) / Memory
Description
3A991.B.1.A Surface Mount AT45CS1282 Tray ic memory 50MHz 15ms 10mm 0.00005A
PDF
/
Inventory: 1473
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mounting Type Surface Mount
Package / Case 40-TFSOP (0.724, 18.40mm Width)
Surface Mount YES
Technical
Operating Temperature 0°C~70°C TC
Packaging Tray
Published 2001
JESD-609 Code e0
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 40
ECCN Code 3A991.B.1.A
Terminal Finish Tin/Lead (Sn/Pb)
Additional Feature 138412032 BITS OF MEMORY ORGANIZED AS 16384 PAGES OF 1056 BYTES EACH
HTS Code 8542.32.00.51
Technology CMOS
Voltage - Supply 2.7V~3.6V
Terminal Position DUAL
Peak Reflow Temperature (Cel) 240
Number of Functions 1
Supply Voltage 3V
Terminal Pitch 0.5mm
Time@Peak Reflow Temperature-Max (s) 30
Base Part Number AT45CS1282
JESD-30 Code R-PDSO-G40
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 3.6V
Power Supplies 3/3.3V
Supply Voltage-Min (Vsup) 2.7V
Memory Size 128Mb 1056Bytes x 16384 pages
Memory Type Non-Volatile
Operating Mode SYNCHRONOUS
Clock Frequency 50MHz
Supply Current-Max 0.065mA
Memory Format FLASH
Memory Interface SPI
Organization 128MX1
Memory Width 1
Write Cycle Time - Word, Page 15ms
Standby Current-Max 0.00005A
Memory Density 134217728 bit
Parallel/Serial PARALLEL/SERIAL
Programming Voltage 2.7V
Serial Bus Type SPI
Endurance 100 Write/Erase Cycles
Data Retention Time-Min 10
Write Protection HARDWARE
Dimensions
Height Seated (Max) 1.2mm
Length 18.4mm
Width 10mm
Compliance
RoHS Status Non-RoHS Compliant
