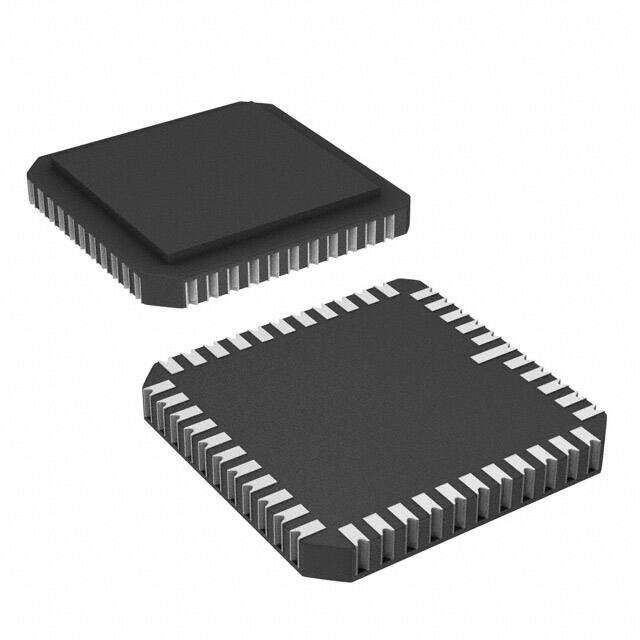

AT28C010E-15LM/883
RoHS
/
Package 44-CLCC
Category Integrated Circuits (ICs) / Memory
Description
Active Lead Tin 3-STATE 1998 EEPROM Memory -55C~125C TC 5V 1Mb 80mA
PDF
/
Buying Options
Total Price: USD $305.07
Unit Price: USD $305.0696
≥1 USD $305.0696
Inventory: 61
Minimum: 1
-
+
Technical Details
Physical
Contact Plating Lead, Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 44-CLCC
Number of Pins 44
Technical
Operating Temperature -55°C~125°C TC
Packaging Tube
Published 1998
JESD-609 Code e0
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 44
ECCN Code 3A001.A.2.C
Terminal Finish TIN LEAD
Additional Feature AUTOMATIC WRITE; DATA RETENTION: 10 YEARS
HTS Code 8542.32.00.51
Technology CMOS
Voltage - Supply 4.5V~5.5V
Terminal Position QUAD
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 5V
Terminal Pitch 1.27mm
Reach Compliance Code not_compliant
Frequency 150GHz
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Base Part Number AT28C010
Qualification Status Not Qualified
Operating Supply Voltage 5V
Power Supplies 5V
Memory Size 1Mb 128K x 8
Nominal Supply Current 80mA
Memory Type Non-Volatile
Operating Mode ASYNCHRONOUS
Access Time 150ns
Memory Format EEPROM
Memory Interface Parallel
Organization 128KX8
Output Characteristics 3-STATE
Memory Width 8
Write Cycle Time - Word, Page 10ms
Density 1 Mb
Standby Current-Max 0.0003A
Screening Level MIL-STD-883
Programming Voltage 5V
Endurance 100000 Write/Erase Cycles
Write Cycle Time-Max (tWC) 10ms
Data Polling YES
Toggle Bit YES
Command User Interface NO
Page Size 128words
Dimensions
Height Seated (Max) 2.74mm
Length 16.55mm
Width 16.55mm
Compliance
RoHS Status Non-RoHS Compliant
Lead Free Contains Lead
