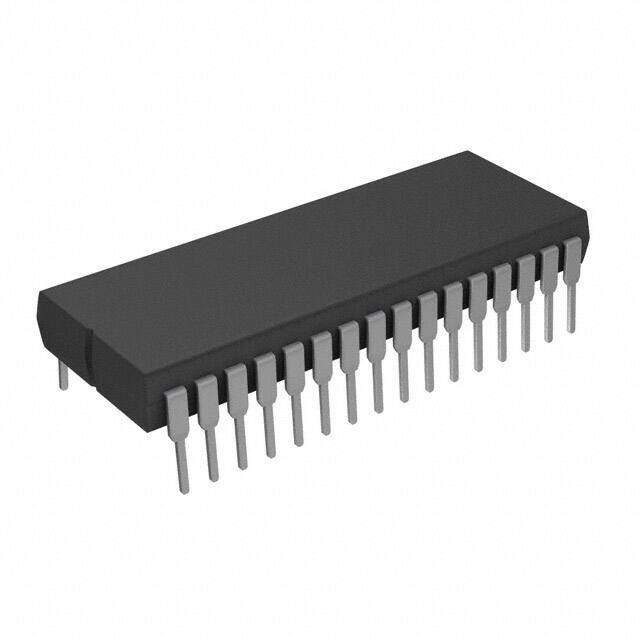

AT28C010-15DM/883
RoHS
/
Package 32-CDIP (0.600, 15.24mm)
Category Integrated Circuits (ICs) / Memory
Description
3A001.A.2.C Through Hole AT28C010 Tube ic memory 150GHz 150ns 15.24mm 80mA
PDF
/
Inventory: 1629
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
Lead Free Contains Lead
RoHS Status Non-RoHS Compliant
Radiation Hardening No
Dimensions
Width 15.24mm
Length 42.2mm
Height Seated (Max) 5.72mm
Technical
Page Size 128words
Command User Interface NO
Toggle Bit YES
Data Polling YES
Write Protection HARDWARE/SOFTWARE
Data Retention Time-Min 10
Write Cycle Time-Max (tWC) 10ms
Endurance 10000 Write/Erase Cycles
Programming Voltage 5V
Screening Level MIL-STD-883 Class C
Standby Current-Max 0.0003A
Density 1 Mb
Write Cycle Time - Word, Page 10ms
Memory Width 8
Organization 128KX8
Memory Interface Parallel
Memory Format EEPROM
Access Time 150ns
Memory Type Non-Volatile
Nominal Supply Current 80mA
Memory Size 1Mb 128K x 8
Operating Supply Voltage 5V
Base Part Number AT28C010
Frequency 150GHz
Terminal Pitch 2.54mm
Supply Voltage 5V
Number of Functions 1
Terminal Position DUAL
Voltage - Supply 4.5V~5.5V
Technology CMOS
ECCN Code 3A001.A.2.C
Number of Terminations 32
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Packaging Tube
Operating Temperature -55°C~125°C TC
Physical
Number of Pins 32
Package / Case 32-CDIP (0.600, 15.24mm)
Mounting Type Through Hole
Mount Through Hole
Supply Chain
Factory Lead Time 23 Weeks
