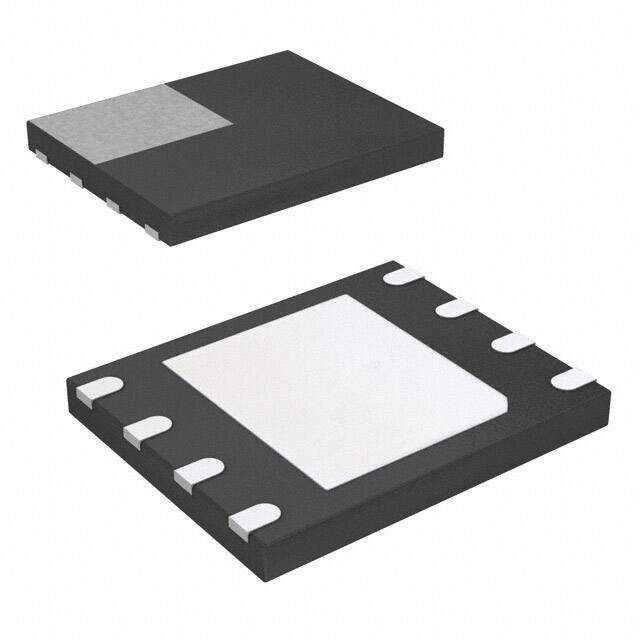

AT25512Y7-YH-T
RoHS
RoHS compliant
RoHS compliantPackage 8-UDFN Exposed Pad
Category Integrated Circuits (ICs) / Memory
Description
e4 Surface Mount AT25512 Tape & Reel (TR) ic memory 20MHz 80ns 4.9mm 7mA
PDF
/
Buying Options
Total Price: USD $1.58
Unit Price: USD $1.5752
≥1 USD $1.5752
≥10 USD $1.5136
≥100 USD $1.452
Inventory: 4033
Minimum: 1
-
+
Technical Details
Technical
Number of Terminations 8
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Published 2005
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Write Protection HARDWARE/SOFTWARE
Data Retention Time-Min 40
Write Cycle Time-Max (tWC) 5ms
Endurance 1000000 Write/Erase Cycles
Serial Bus Type SPI
Standby Current-Max 0.000003A
Density 512 kb
Write Cycle Time - Word, Page 5ms
Memory Width 8
Memory Interface SPI
Memory Format EEPROM
Access Time 80 ns
Clock Frequency 20MHz
Operating Mode SYNCHRONOUS
Memory Type Non-Volatile
Nominal Supply Current 7mA
Memory Size 512Kb 64K x 8
Interface SPI, Serial
Power Supplies 2/5V
Supply Voltage-Max (Vsup) 3.6V
Operating Supply Voltage 3.3V
Qualification Status Not Qualified
Base Part Number AT25512
Terminal Pitch 1.27mm
Supply Voltage 2.7V
Number of Functions 1
Terminal Position DUAL
Voltage - Supply 1.8V~5.5V
Technology CMOS
Terminal Finish Nickel/Palladium/Gold (Ni/Pd/Au)
Physical
Number of Pins 8
Package / Case 8-UDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Contact Plating Tin
Supply Chain
Factory Lead Time 7 Weeks
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 4.9mm
Length 6mm
Height Seated (Max) 0.6mm
