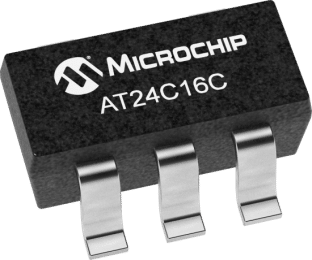

AT24C16C-STPD-TVAO
RoHS
/
Package SOT-23-5 Thin, TSOT-23-5
Category Integrated Circuits (ICs) / Memory
Description
Active I2C SERIAL AEC-Q100; TS 16949 ic memory -40C~125C TA 2.5V 16384bit 1.6mm
PDF
/
Inventory: 1165
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Dimensions
Width 1.6mm
Length 2.9mm
Height Seated (Max) 1mm
Technical
Write Cycle Time-Max (tWC) 5ms
Serial Bus Type I2C
Parallel/Serial SERIAL
Screening Level AEC-Q100; TS 16949
Memory Density 16384 bit
Write Cycle Time - Word, Page 5ms
Memory Width 8
Organization 2KX8
Memory Interface I2C
Memory Format EEPROM
Access Time 550ns
Clock Frequency 1MHz
Operating Mode SYNCHRONOUS
Memory Type Non-Volatile
Memory Size 16Kb 2K x 8
Supply Voltage-Min (Vsup) 2.5V
Supply Voltage-Max (Vsup) 5.5V
JESD-30 Code R-PDSO-G5
Base Part Number AT24C16C
Reach Compliance Code compliant
Terminal Pitch 0.95mm
Supply Voltage 3V
Number of Functions 1
Terminal Position DUAL
Voltage - Supply 2.5V~5.5V
Technology CMOS
Additional Feature ALSO OPERATES AT 0.4MHZ AT 1.7-5.5 SUPPLY VOLTAGE
Number of Terminations 5
Moisture Sensitivity Level (MSL) 2 (1 Year)
Part Status Active
Series Automotive, AEC-Q100
Packaging Tape & Reel (TR)
Operating Temperature -40°C~125°C TA
Physical
Surface Mount YES
Package / Case SOT-23-5 Thin, TSOT-23-5
Mounting Type Surface Mount
