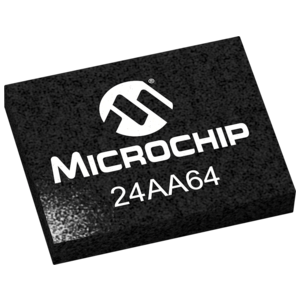

24AA64T-I/CS16K
RoHS
RoHS compliant
RoHS compliantPackage 5-UFBGA, CSPBGA
Category Integrated Circuits (ICs) / Memory
Description
EAR99 Surface Mount 24AA64 Tape & Reel (TR) ic memory 400kHz 900ns 3mA 64kb
PDF
/
Buying Options
Total Price: USD $2.4
Unit Price: USD $2.402607
≥1 USD $2.402607
≥200 USD $0.930846
≥500 USD $0.898024
≥1000 USD $0.880956
Inventory: 1547
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Plating Copper, Silver, Tin
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 5-UFBGA, CSPBGA
Number of Pins 5
Technical
Operating Temperature -40°C~85°C TA
Packaging Tape & Reel (TR)
Published 2010
JESD-609 Code e1
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 4
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Technology CMOS
Voltage - Supply 1.7V~5.5V
Terminal Position BOTTOM
Number of Functions 1
Supply Voltage 2.5V
Base Part Number 24AA64
Pin Count 4
JESD-30 Code R-PBGA-B4
Operating Supply Voltage 5V
Supply Voltage-Min (Vsup) 1.7V
Interface I2C, Serial
Memory Size 64Kb 8K x 8
Nominal Supply Current 3mA
Memory Type Non-Volatile
Clock Frequency 400kHz
Access Time 900ns
Memory Format EEPROM
Memory Interface I2C
Organization 8KX8
Memory Width 8
Write Cycle Time - Word, Page 5ms
Density 64 kb
Standby Current-Max 0.000001A
Serial Bus Type I2C
Endurance 1000000 Write/Erase Cycles
Data Retention Time-Min 200
Write Protection HARDWARE
I2C Control Byte 1010DDDR
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
