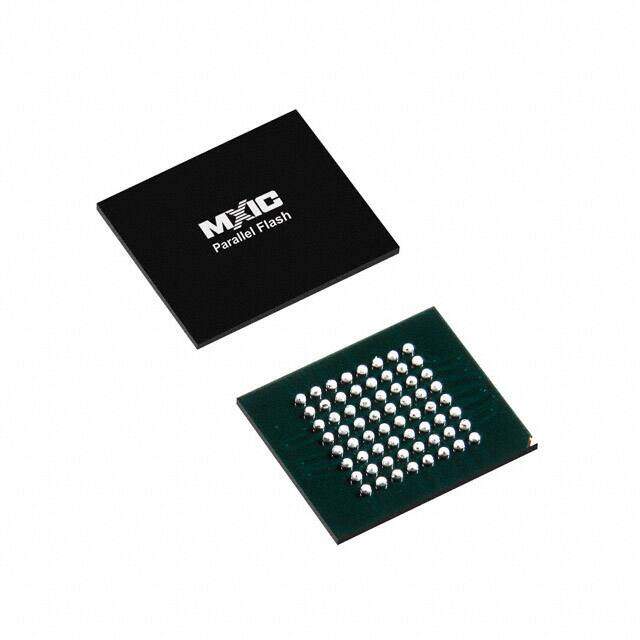

MX29GL512FLXFI-10Q
RoHS
RoHS compliant
RoHS compliantPackage 64-LBGA, CSPBGA
Category Integrated Circuits (ICs) / Memory
Description
R-PBGA-B64 Surface Mount Tray 32MX16 ic memory 100ns 11mm 0.00002A 536870912bit
PDF
/
Buying Options
Total Price: USD $18.59
Unit Price: USD $18.59329
≥1 USD $18.59329
≥144 USD $7.419198
≥432 USD $7.17106
≥1008 USD $7.04896
Inventory: 7054
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 16 Weeks
Physical
Mounting Type Surface Mount
Package / Case 64-LBGA, CSPBGA
Surface Mount YES
Technical
Operating Temperature -40°C~85°C TA
Packaging Tray
Series MX29GL
JESD-609 Code e1
Part Status Not For New Designs
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 64
Terminal Finish Tin/Silver/Copper (Sn95.5Ag4.0Cu0.5)
Technology FLASH - NOR
Voltage - Supply 2.7V~3.6V
Terminal Position BOTTOM
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 1mm
Time@Peak Reflow Temperature-Max (s) 40
JESD-30 Code R-PBGA-B64
Qualification Status Not Qualified
Supply Voltage-Max (Vsup) 3.6V
Power Supplies 3/3.3V
Supply Voltage-Min (Vsup) 3V
Memory Size 512Mb 64M x 8
Memory Type Non-Volatile
Operating Mode ASYNCHRONOUS
Supply Current-Max 0.03mA
Memory Format FLASH
Memory Interface Parallel
Organization 32MX16
Memory Width 16
Write Cycle Time - Word, Page 100ns
Standby Current-Max 0.00002A
Memory Density 536870912 bit
Access Time (Max) 100 ns
Programming Voltage 3V
Alternate Memory Width 8
Data Polling YES
Toggle Bit YES
Command User Interface YES
Number of Sectors/Size 512
Sector Size 128K
Page Size 8/16words
Ready/Busy YES
Common Flash Interface YES
Dimensions
Height Seated (Max) 1.4mm
Length 13mm
Width 11mm
Compliance
RoHS Status ROHS3 Compliant
