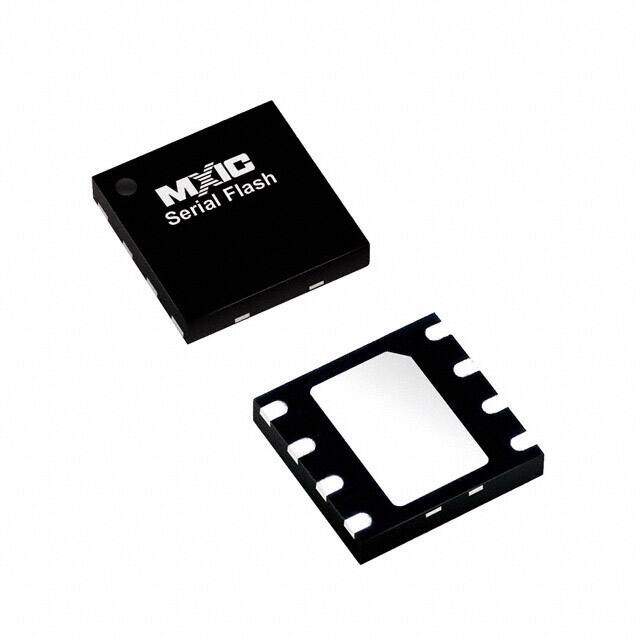

MX25L8006EZUI-12G
RoHS
RoHS compliant
RoHS compliantPackage 8-UDFN Exposed Pad
Category Integrated Circuits (ICs) / Memory
Description
EAR99 Surface Mount Tray 4MX2 ic memory 86MHz 50mus 3ms 4mm 0.00001A
PDF
/
Buying Options
Total Price: USD $0.46
Unit Price: USD $0.4576
≥1 USD $0.4576
≥10 USD $0.41712
≥100 USD $0.411488
≥500 USD $0.40898
≥1000 USD $0.365754
≥3000 USD $0.363018
Inventory: 81628
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Width 4mm
Length 4mm
Height Seated (Max) 0.6mm
Technical
Alternate Memory Width 1
Write Protection HARDWARE/SOFTWARE
Data Retention Time-Min 20
Endurance 100000 Write/Erase Cycles
Serial Bus Type SPI
Programming Voltage 2.7V
Standby Current-Max 0.00001A
Density 8 Mb
Write Cycle Time - Word, Page 50μs, 3ms
Memory Width 2
Organization 4MX2
Memory Interface SPI
Memory Format FLASH
Supply Current-Max 0.02mA
Clock Frequency 86MHz
Operating Mode SYNCHRONOUS
Memory Type Non-Volatile
Memory Size 8Mb 1M x 8
Interface SPI, Serial
Supply Voltage-Min (Vsup) 2.7V
Power Supplies 3/3.3V
Operating Supply Voltage 3.6V
Qualification Status Not Qualified
JESD-30 Code S-PDSO-N8
Pin Count 8
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Terminal Pitch 0.8mm
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Voltage - Supply 2.7V~3.6V
Technology FLASH - NOR
HTS Code 8542.32.00.51
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
Series MX25xxx05/06
Published 2010
Packaging Tray
Operating Temperature -40°C~85°C TA
Physical
Surface Mount YES
Package / Case 8-UDFN Exposed Pad
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 16 Weeks
