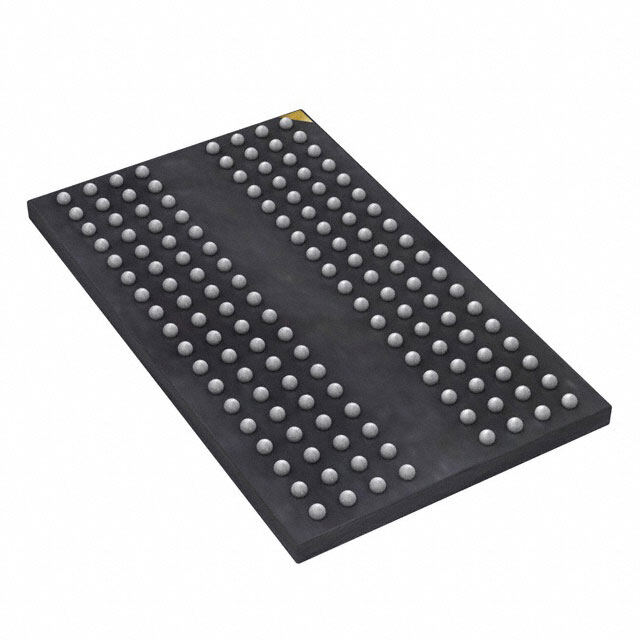

IS49NLC36800-25B
RoHS
/
Package 144-TFBGA
Category Integrated Circuits (ICs) / Memory
Description
Active 3-STATE BOTTOM Volatile ic memory 0C~70C TA 1.7V 36b 0.99mA
PDF
/
Inventory: 1211
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status Non-RoHS Compliant
Dimensions
Length 18.5mm
Height Seated (Max) 1.2mm
Technical
Sequential Burst Length 248
I/O Type COMMON
Max Frequency 400MHz
Memory Density 301989888 bit
Memory Width 36
Output Characteristics 3-STATE
Organization 8MX36
Data Bus Width 36b
Memory Interface Parallel
Memory Format DRAM
Access Time 20ns
Supply Current-Max 0.99mA
Operating Mode SYNCHRONOUS
Memory Type Volatile
Number of Ports 1
Memory Size 288Mb 8M x 36
Supply Voltage-Min (Vsup) 1.7V
Power Supplies 1.5/1.81.82.5V
Supply Voltage-Max (Vsup) 1.9V
Qualification Status Not Qualified
Pin Count 144
Terminal Pitch 1mm
Supply Voltage 1.8V
Number of Functions 1
Terminal Position BOTTOM
Voltage - Supply 1.7V~1.9V
Technology CMOS
HTS Code 8542.32.00.28
Additional Feature AUTO REFRESH
ECCN Code EAR99
Number of Terminations 144
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Packaging Tray
Operating Temperature 0°C~70°C TA
Physical
Number of Pins 144
Surface Mount YES
Package / Case 144-TFBGA
Mounting Type Surface Mount
