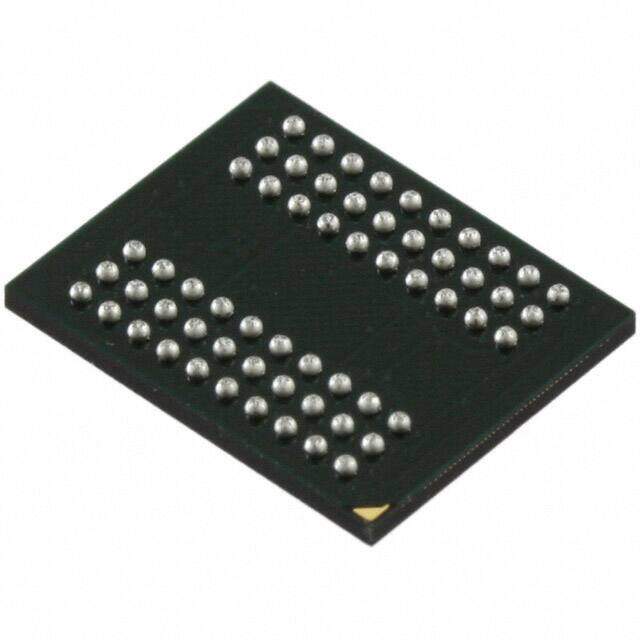

IS46LR16320C-6BLA2
RoHS
RoHS compliant
RoHS compliantPackage 60-TFBGA
Category Integrated Circuits (ICs) / Memory
Description
Active 3-STATE AEC-Q100 BOTTOM ic memory -40C~105C TA 1.7V 512Mb 60mA
PDF
/
Buying Options
Total Price: USD $18.79
Unit Price: USD $18.79385
≥1 USD $18.79385
≥10 USD $15.4204
≥100 USD $14.93875
≥500 USD $14.4571
≥1000 USD $13.97545
Inventory: 583
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 10mm
Height Seated (Max) 1.1mm
Technical
Interleaved Burst Length 24816
Sequential Burst Length 24816
Refresh Cycles 8192
I/O Type COMMON
Screening Level AEC-Q100
Standby Current-Max 0.0003A
Density 512 Mb
Address Bus Width 15b
Write Cycle Time - Word, Page 15ns
Memory Width 16
Output Characteristics 3-STATE
Organization 32MX16
Data Bus Width 16b
Memory Interface Parallel
Memory Format DRAM
Access Time 5.5ns
Clock Frequency 166MHz
Max Supply Current 60mA
Operating Mode SYNCHRONOUS
Memory Type Volatile
Nominal Supply Current 110mA
Number of Ports 1
Memory Size 512Mb 32M x 16
Supply Voltage-Min (Vsup) 1.7V
Supply Voltage-Max (Vsup) 1.95V
Operating Supply Voltage 1.8V
Qualification Status Not Qualified
Terminal Pitch 0.8mm
Supply Voltage 1.8V
Number of Functions 1
Terminal Position BOTTOM
Voltage - Supply 1.7V~1.95V
Technology SDRAM - Mobile LPDDR
Additional Feature AUTO/SELF REFRESH
Number of Terminations 60
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Active
Packaging Tray
Operating Temperature -40°C~105°C TA
Physical
Number of Pins 60
Package / Case 60-TFBGA
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
