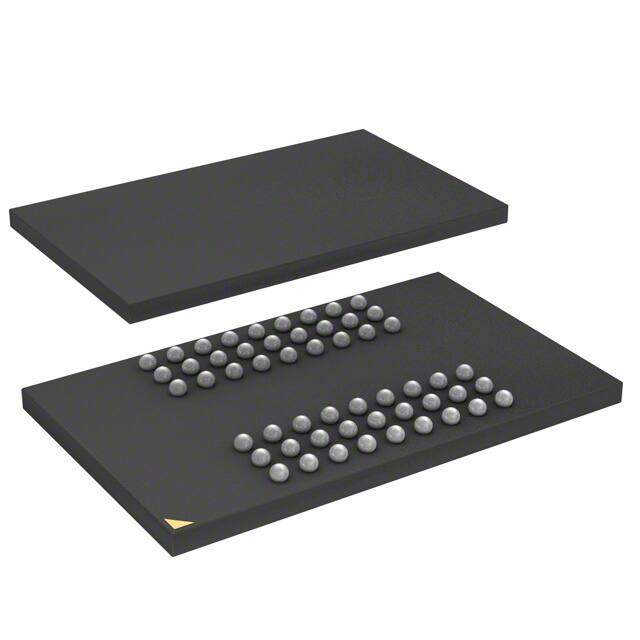

IS45S16320B-7BLA1 image
Favorite
IS45S16320B-7BLA1 image
Favorite
RoHS
RoHS RoHS compliant
Package 54-TFBGA
Category Integrated Circuits (ICs) / Memory
Description Discontinued 3-STATE AEC-Q100 BOTTOM ic memory -40C~85C TA 3V 512Mb 150mA
PDF
/
Inventory: 1235
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 54-TFBGA
Number of Pins 54

Technical

Operating Temperature -40°C~85°C TA
Packaging Tray
JESD-609 Code e1
Pbfree Code yes
Part Status Discontinued
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 54
ECCN Code EAR99
Terminal Finish TIN SILVER COPPER
Additional Feature AUTO/SELF REFRESH
Technology SDRAM
Voltage - Supply 3V~3.6V
Terminal Position BOTTOM
Peak Reflow Temperature (Cel) 255
Number of Functions 1
Supply Voltage 3.3V
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) 10
Pin Count 54
Operating Supply Voltage 3.3V
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 3V
Memory Size 512Mb 32M x 16
Number of Ports 1
Nominal Supply Current 150mA
Memory Type Volatile
Clock Frequency 143MHz
Access Time 5.4ns
Memory Format DRAM
Memory Interface Parallel
Data Bus Width 16b
Organization 32MX16
Output Characteristics 3-STATE
Memory Width 16
Address Bus Width 15b
Density 512 Mb
Standby Current-Max 0.004A
Screening Level AEC-Q100
I/O Type COMMON
Refresh Cycles 8192
Sequential Burst Length 1248FP
Interleaved Burst Length 1248

Dimensions

Height Seated (Max) 1.2mm
Length 13mm

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
