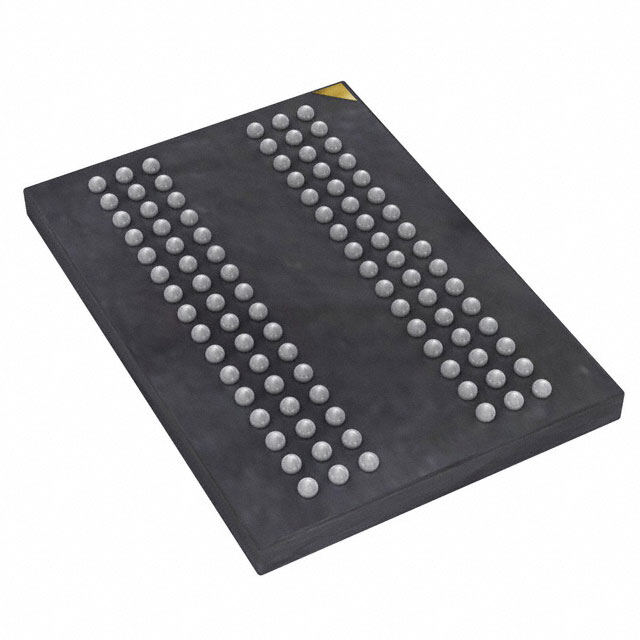

IS43TR16512A-15HBL-TR
RoHS
RoHS compliant
RoHS compliantPackage 96-LFBGA
Category Integrated Circuits (ICs) / Memory
Description
Active BOTTOM Volatile SYNCHRONOUS ic memory 0C~95C TC 1.425V 8Gb 14mm
PDF
/
Inventory: 1153
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 96
Additional Feature AUTO/SELF REFRESH
Technology SDRAM - DDR3
Voltage - Supply 1.425V~1.575V
Terminal Position BOTTOM
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 1.5V
Terminal Pitch 0.8mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Operating Supply Voltage 1.5V
Supply Voltage-Max (Vsup) 1.575V
Supply Voltage-Min (Vsup) 1.425V
Memory Size 8Gb 512M x 16
Number of Ports 1
Memory Type Volatile
Operating Mode SYNCHRONOUS
Clock Frequency 667MHz
Access Time 20ns
Memory Format DRAM
Memory Interface Parallel
Organization 512MX16
Memory Width 16
Part Status Active
Packaging Tape & Reel (TR)
Operating Temperature 0°C~95°C TC
Max Frequency 1.333GHz
Density 8 Gb
Address Bus Width 15b
Write Cycle Time - Word, Page 15ns
Physical
Number of Pins 96
Surface Mount YES
Package / Case 96-LFBGA
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 12 Weeks
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Length 14mm
Height Seated (Max) 1.4mm
