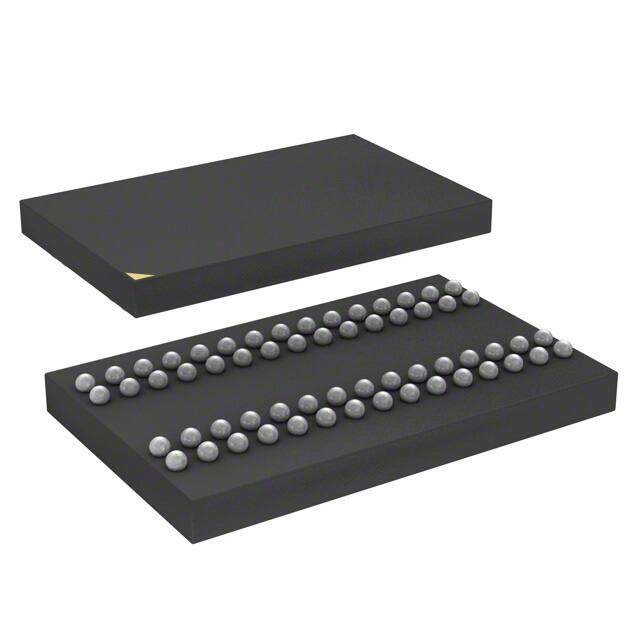

IS42S16100F-6BL
RoHS
/
Package 60-TFBGA
Category Integrated Circuits (ICs) / Memory
Description
Obsolete 3-STATE BOTTOM Volatile ic memory 0C~70C TA 3V 16Mb 110mA
PDF
/
Inventory: 947
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status RoHS Compliant
Dimensions
Length 10.1mm
Height Seated (Max) 1.2mm
Technical
Interleaved Burst Length 1248
Sequential Burst Length 1248FP
Refresh Cycles 2048
I/O Type COMMON
Standby Current-Max 0.002A
Density 16 Mb
Address Bus Width 12b
Memory Width 16
Output Characteristics 3-STATE
Organization 1MX16
Data Bus Width 16b
Memory Interface Parallel
Memory Format DRAM
Access Time 5.5ns
Clock Frequency 166MHz
Operating Mode SYNCHRONOUS
Memory Type Volatile
Nominal Supply Current 110mA
Number of Ports 1
Memory Size 16Mb 1M x 16
Supply Voltage-Min (Vsup) 3V
Supply Voltage-Max (Vsup) 3.6V
Operating Supply Voltage 3.3V
Qualification Status Not Qualified
Pin Count 60
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.65mm
Supply Voltage 3.3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position BOTTOM
Voltage - Supply 3V~3.6V
Technology SDRAM
HTS Code 8542.32.00.02
Additional Feature AUTO/SELF REFRESH
Terminal Finish TIN SILVER COPPER
ECCN Code EAR99
Number of Terminations 60
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e1
Packaging Tray
Operating Temperature 0°C~70°C TA
Physical
Number of Pins 60
Package / Case 60-TFBGA
Mounting Type Surface Mount
Mount Surface Mount
