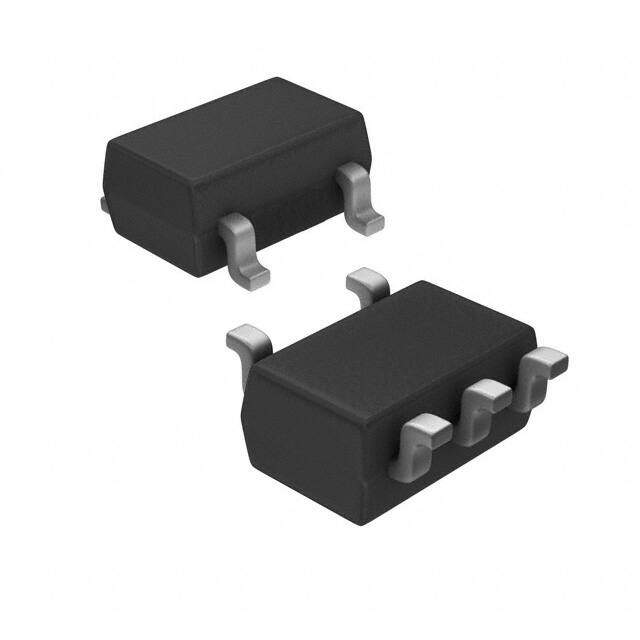

FT24C04A-ULR-T
RoHS
RoHS compliant
RoHS compliantPackage SC-74A, SOT-753
Category Integrated Circuits (ICs) / Memory
Description
R-PDSO-G5 Surface Mount Cut Tape (CT) 512X8 ic memory 1MHz 550ns 1.6mm 4096bit
PDF
/
Buying Options
Total Price: USD $3.43
Unit Price: USD $3.42665
≥1 USD $3.42665
≥10 USD $2.812
≥100 USD $2.7246
≥500 USD $2.63625
≥1000 USD $2.54885
Inventory: 11504
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 1.6mm
Length 2.92mm
Height Seated (Max) 1.25mm
Technical
Write Cycle Time-Max (tWC) 5ms
Serial Bus Type I2C
Memory Density 4096 bit
Write Cycle Time - Word, Page 5ms
Memory Width 8
Organization 512X8
Memory Interface I2C
Memory Format EEPROM
Access Time 550ns
Clock Frequency 1MHz
Operating Mode SYNCHRONOUS
Memory Type Non-Volatile
Memory Size 4Kb 512 x 8
Interface 2-Wire, I2C, Serial
Supply Voltage-Min (Vsup) 2.5V
Supply Voltage-Max (Vsup) 5.5V
JESD-30 Code R-PDSO-G5
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
Reach Compliance Code unknown
Terminal Pitch 0.95mm
Supply Voltage 5V
Number of Functions 1
Peak Reflow Temperature (Cel) NOT SPECIFIED
Terminal Position DUAL
Voltage - Supply 1.8V~5.5V
Technology CMOS
Additional Feature IT ALSO HAVE FREQUENCY 0.4 MHZ OPERATES AT 1.8V
Number of Terminations 5
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Discontinued
Pbfree Code yes
Published 2010
Packaging Cut Tape (CT)
Operating Temperature -40°C~85°C
Physical
Surface Mount YES
Package / Case SC-74A, SOT-753
Mounting Type Surface Mount
Supply Chain
Factory Lead Time 6 Weeks
