MR25H256CDFR
RoHS
RoHS compliant

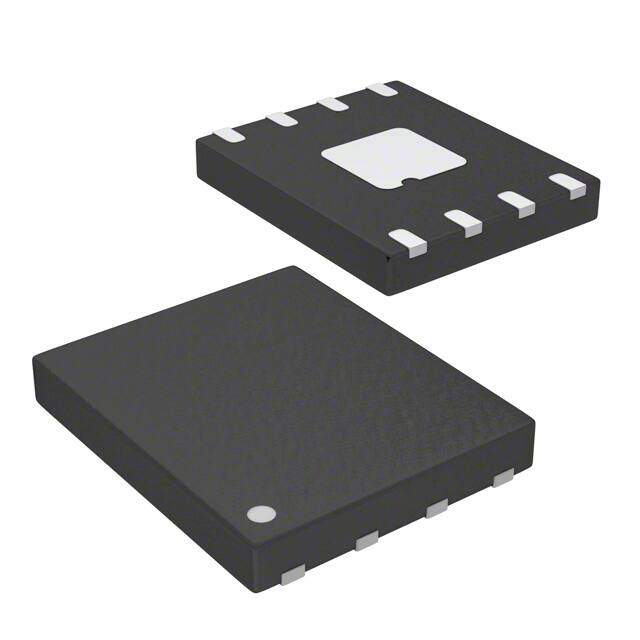

RoHS compliantPackage 8-VDFN Exposed Pad
Category Integrated Circuits (ICs) / Memory
Description
EAR99 Surface Mount Tape & Reel (TR) MRAM (Magnetoresistive RAM) ic memory 40MHz 10ns 6mm 27mA
PDF
/
Buying Options
Total Price: USD $13.74
Unit Price: USD $13.739499
≥1 USD $13.739499
≥200 USD $5.48267
≥500 USD $5.298864
≥1000 USD $5.208274
Inventory: 4607
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
Dimensions
Length 6mm
Height Seated (Max) 0.9mm
Technical
Word Size 8b
Density 256 kb
Memory Width 8
Data Bus Width 8b
Memory Interface SPI
Memory Format RAM
Access Time 10 ns
Clock Frequency 40MHz
Operating Mode SYNCHRONOUS
Memory Type Non-Volatile
Nominal Supply Current 27mA
Memory Size 256Kb 32K x 8
Interface SPI, Serial
Supply Voltage-Min (Vsup) 2.7V
Supply Voltage-Max (Vsup) 3.6V
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 1.27mm
Supply Voltage 3V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position DUAL
Voltage - Supply 2.7V~3.6V
Technology MRAM (Magnetoresistive RAM)
Max Power Dissipation 600mW
ECCN Code EAR99
Number of Terminations 8
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Not For New Designs
Published 2013
Packaging Tape & Reel (TR)
Operating Temperature -40°C~85°C TA
Physical
Number of Pins 8
Package / Case 8-VDFN Exposed Pad
Mounting Type Surface Mount
Mount Surface Mount
Supply Chain
Factory Lead Time 14 Weeks
