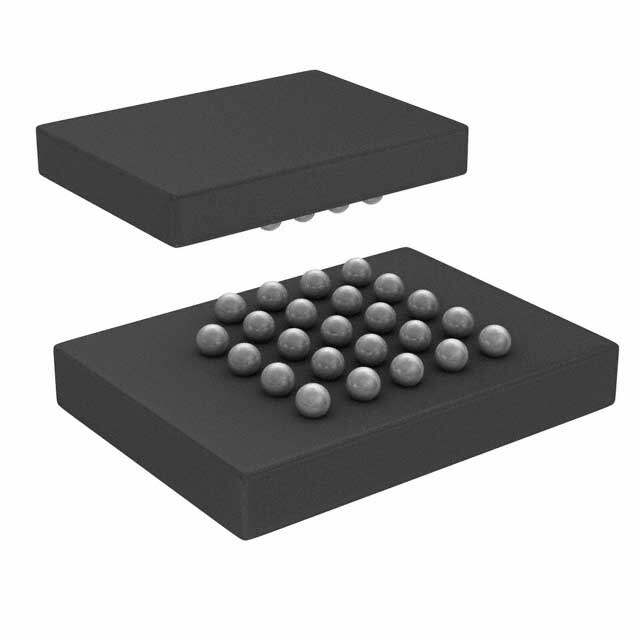

S70FS01GSDSBHB213 image
Favorite
S70FS01GSDSBHB213 image
Favorite

S70FS01GSDSBHB213

Cypress Semiconductor Corp
RoHS
RoHS RoHS compliant
Package 24-TBGA
Category Integrated Circuits (ICs) / Memory
Description 8542.32.00.71 Surface Mount Tape & Reel (TR) 256MX4 ic memory 80MHz 6mm 1073741824bit 1.7V
PDF
/
Inventory: 1469
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mounting Type Surface Mount
Package / Case 24-TBGA
Surface Mount YES

Technical

Operating Temperature -40°C~105°C TA
Packaging Tape & Reel (TR)
Series Automotive, AEC-Q100, FS-S
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 24
Additional Feature IT IS ALSO CONFIGURED AS 1G X 1
HTS Code 8542.32.00.71
Technology FLASH - NOR
Voltage - Supply 1.7V~2V
Terminal Position BOTTOM
Peak Reflow Temperature (Cel) NOT SPECIFIED
Number of Functions 1
Supply Voltage 1.8V
Terminal Pitch 1mm
Time@Peak Reflow Temperature-Max (s) NOT SPECIFIED
JESD-30 Code R-PBGA-B24
Supply Voltage-Max (Vsup) 2V
Supply Voltage-Min (Vsup) 1.7V
Memory Size 1Gb 128M x 8
Memory Type Non-Volatile
Operating Mode SYNCHRONOUS
Clock Frequency 80MHz
Memory Format FLASH
Memory Interface SPI - Quad I/O
Organization 256MX4
Memory Width 4
Memory Density 1073741824 bit
Parallel/Serial SERIAL
Programming Voltage 1.8V
Alternate Memory Width 2

Dimensions

Height Seated (Max) 1.2mm
Length 8mm
Width 6mm

Compliance

RoHS Status ROHS3 Compliant
