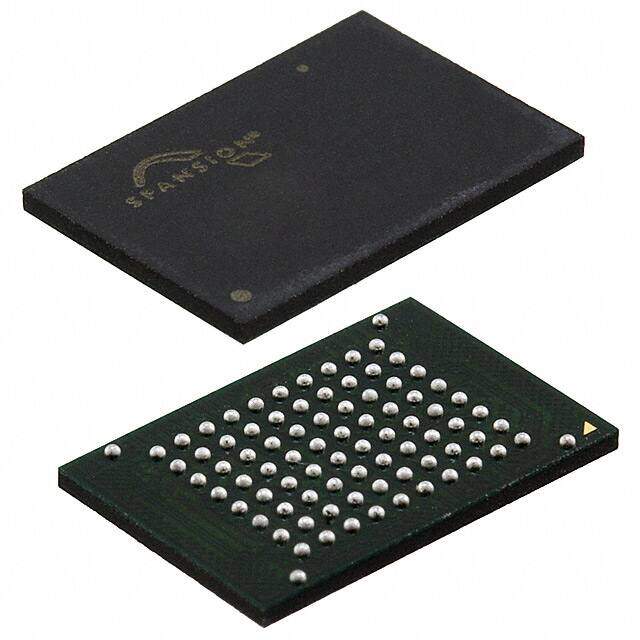

S29WS128PABBFW000
RoHS
RoHS compliant
RoHS compliantPackage 84-VFBGA
Category Integrated Circuits (ICs) / Memory
Description
3A991.B.1.A Surface Mount Tray 8MX16 ic memory 104MHz 80ns 8mm 0.000005A
PDF
/
Buying Options
Total Price: USD $21.12
Unit Price: USD $21.123248
≥1 USD $21.123248
≥200 USD $8.428818
≥400 USD $8.146545
≥1000 USD $8.007377
Inventory: 7394
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Dimensions
Width 8mm
Length 11.6mm
Height Seated (Max) 1mm
Technical
Common Flash Interface YES
Boot Block BOTTOM/TOP
Ready/Busy YES
Page Size 8words
Sector Size 16K64K
Number of Sectors/Size 8126
Command User Interface YES
Toggle Bit YES
Data Polling YES
Programming Voltage 1.8V
Memory Density 134217728 bit
Standby Current-Max 0.000005A
Write Cycle Time - Word, Page 60ns
Memory Width 16
Organization 8MX16
Memory Interface Parallel
Memory Format FLASH
Access Time 80ns
Supply Current-Max 0.08mA
Clock Frequency 104MHz
Operating Mode ASYNCHRONOUS
Memory Type Non-Volatile
Memory Size 128Mb 8M x 16
Supply Voltage-Min (Vsup) 1.7V
Power Supplies 1.8V
Supply Voltage-Max (Vsup) 1.95V
Qualification Status Not Qualified
Time@Peak Reflow Temperature-Max (s) 40
Terminal Pitch 0.8mm
Supply Voltage 1.8V
Number of Functions 1
Peak Reflow Temperature (Cel) 260
Terminal Position BOTTOM
Voltage - Supply 1.7V~1.95V
Technology FLASH - NOR
HTS Code 8542.32.00.51
Additional Feature SYNCHRONOUS BURST MODE OPERATION POSSIBLE
Terminal Finish Tin/Silver/Copper (Sn96.5Ag3.0Cu0.5)
ECCN Code 3A991.B.1.A
Number of Terminations 84
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Last Time Buy
JESD-609 Code e1
Series WS-P
Published 2015
Packaging Tray
Operating Temperature -25°C~85°C TA
Physical
Number of Pins 84
Surface Mount YES
Package / Case 84-VFBGA
Mounting Type Surface Mount
