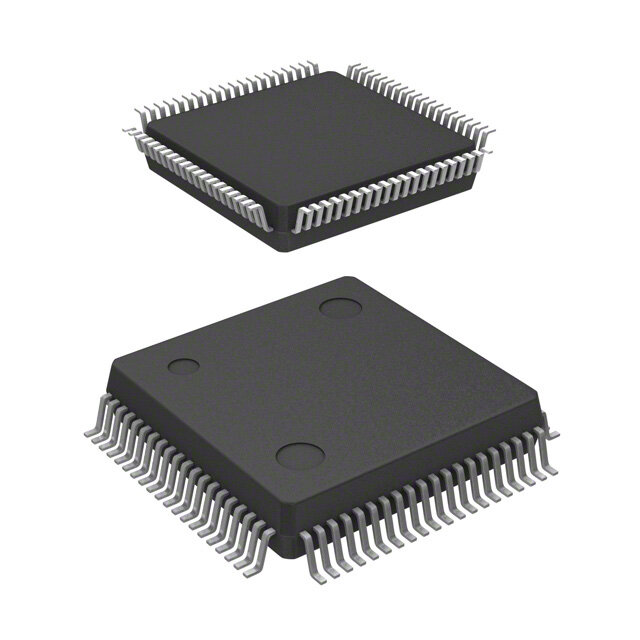

S29CL032J0PQFM010 image
Favorite
S29CL032J0PQFM010 image
Favorite

S29CL032J0PQFM010

Cypress Semiconductor Corp
RoHS
RoHS RoHS compliant
Package 80-BQFP
Category Integrated Circuits (ICs) / Memory
Description 3A991.B.1.A Surface Mount Tray 1MX32 ic memory 66MHz 54ns 20mm 75mA
PDF
/
Inventory: /
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Radiation Hardening No

Dimensions

Length 20mm
Height Seated (Max) 3.35mm

Technical

Common Flash Interface YES
Boot Block BOTTOM
Ready/Busy YES
Sector Size 2K16K
Number of Sectors/Size 1662
Command User Interface YES
Toggle Bit YES
Data Polling YES
Word Size 32b
Sync/Async Asynchronous
Standby Current-Max 0.00006A
Density 32 Mb
Address Bus Width 20b
Write Cycle Time - Word, Page 60ns
Memory Width 32
Organization 1MX32
Memory Interface Parallel
Memory Format FLASH
Access Time 54ns
Clock Frequency 66MHz
Memory Type Non-Volatile
Nominal Supply Current 75mA
Memory Size 32Mb 1M x 32
Supply Voltage-Min (Vsup) 3V
Supply Voltage-Max (Vsup) 3.6V
Operating Supply Voltage 3.3V
Terminal Pitch 0.8mm
Supply Voltage 3.3V
Number of Functions 1
Terminal Position QUAD
Voltage - Supply 1.65V~3.6V
Technology FLASH - NOR
HTS Code 8542.32.00.51
Terminal Finish Matte Tin (Sn)
ECCN Code 3A991.B.1.A
Number of Terminations 80
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Part Status Obsolete
JESD-609 Code e3
Series CL-J
Packaging Tray
Operating Temperature -40°C~125°C TA

Physical

Number of Pins 80
Package / Case 80-BQFP
Mounting Type Surface Mount
Mount Surface Mount
