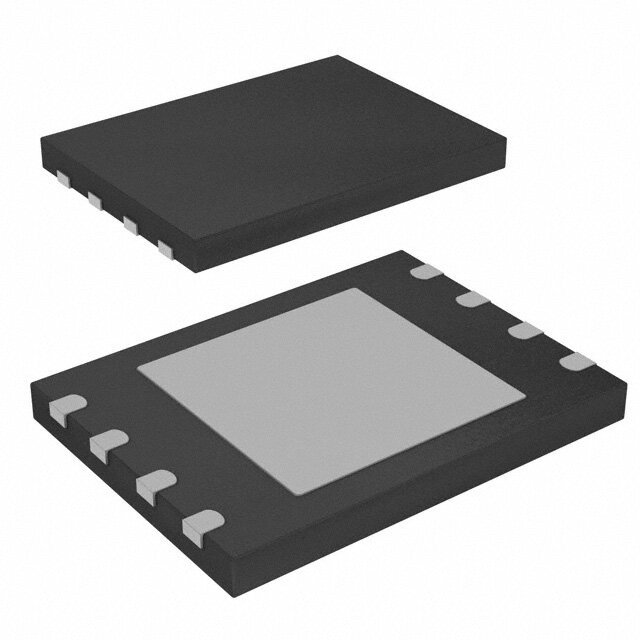

S25FL256SAGNFI010 image
Favorite
S25FL256SAGNFI010 image
Favorite

S25FL256SAGNFI010

Cypress Semiconductor Corp
RoHS
RoHS RoHS compliant
Package 8-WDFN Exposed Pad
Category Integrated Circuits (ICs) / Memory
Description Surface Mount Tray 64MX4 FLASH - NOR ic memory 133MHz 6.5ns 1.27mm 0.0001A
PDF
/
Buying Options
Total Price: USD $3.28
Unit Price: USD $3.2824
≥1 USD $3.2824
≥10 USD $2.99552
≥100 USD $2.938496
≥500 USD $2.9172
≥1000 USD $2.882
Inventory: 3670
Minimum: 1
-
+

Technical Details

Supply Chain

Factory Lead Time 13 Weeks

Physical

Mount Surface Mount
Mounting Type Surface Mount
Package / Case 8-WDFN Exposed Pad
Number of Pins 8

Technical

Operating Temperature -40°C~85°C TA
Packaging Tray
Published 2015
Series FL-S
Part Status Active
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 8
Additional Feature IT ALSO CONFIGURED AS 256M X 1
Technology FLASH - NOR
Voltage - Supply 2.7V~3.6V
Terminal Position DUAL
Number of Functions 1
Supply Voltage 3V
Terminal Pitch 1.27mm
Operating Supply Voltage 3V
Supply Voltage-Max (Vsup) 3.6V
Supply Voltage-Min (Vsup) 2.7V
Interface SPI, Serial
Memory Size 256Mb 32M x 8
Memory Type Non-Volatile
Clock Frequency 133MHz
Supply Current-Max 0.1mA
Access Time 6.5 ns
Memory Format FLASH
Memory Interface SPI - Quad I/O
Organization 64MX4
Memory Width 4
Address Bus Width 32b
Density 256 Mb
Standby Current-Max 0.0001A
Programming Voltage 3V
Serial Bus Type SPI
Endurance 100000 Write/Erase Cycles
Write Cycle Time-Max (tWC) 500ms
Data Retention Time-Min 20
Write Protection HARDWARE/SOFTWARE
Alternate Memory Width 2
Boot Block BOTTOM

Compliance

Radiation Hardening No
RoHS Status ROHS3 Compliant
