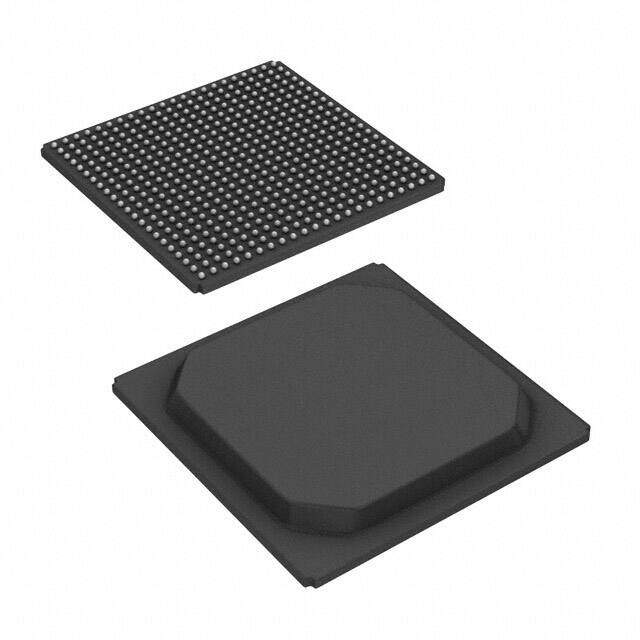

CYD36S18V18-200BGXC
RoHS
RoHS compliant
RoHS compliantPackage 484-FBGA
Category Integrated Circuits (ICs) / Memory
Description
e1 Surface Mount CYD36S18 Tray ic memory 200MHz 3.3ns 1mm 1.43A
PDF
/
Inventory: 1154
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 484-FBGA
Number of Pins 484
Technical
Operating Temperature 0°C~70°C TA
Packaging Tray
Published 2011
JESD-609 Code e1
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 484
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Additional Feature PIPELINED OR FLOW-THROUGH ARCHITECTURE, IT CAN ALSO OPERATES AT 1.8V
Technology SRAM - Dual Port, Synchronous
Voltage - Supply 1.42V~1.58V 1.7V~1.9V
Terminal Position BOTTOM
Peak Reflow Temperature (Cel) 260
Number of Functions 1
Supply Voltage 1.5V
Terminal Pitch 1mm
Time@Peak Reflow Temperature-Max (s) 20
Base Part Number CYD36S18
Pin Count 484
Operating Supply Voltage 1.8V
Supply Voltage-Max (Vsup) 1.58V
Memory Size 36Mb 2M x 18
Number of Ports 2
Nominal Supply Current 1.43A
Memory Type Volatile
Clock Frequency 200MHz
Access Time 3.3ns
Memory Format SRAM
Memory Interface Parallel
Output Characteristics 3-STATE
Memory Width 18
Address Bus Width 21b
Density 36 Mb
Standby Current-Max 0.59A
I/O Type COMMON
Sync/Async Synchronous
Word Size 18b
Standby Voltage-Min 1.4V
Compliance
Radiation Hardening No
RoHS Status ROHS3 Compliant
