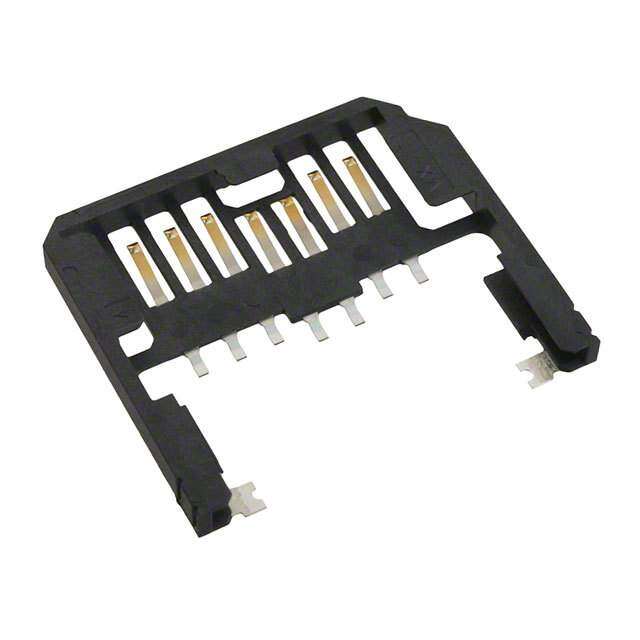

94352-5007
RoHS
/
Package /
Category Connectors, Interconnects / Memory Connectors - PC Card Sockets
Description
CONN MMC CARD PUSH-PULL R/A SMD
PDF
/
Inventory: 5773
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type BOARD
Insulation Material LIQUID CRYSTAL POLYMER (LCP)
Mounting Style RIGHT ANGLE
Board Mounting Option SOLDER HOLDING POSTS
Technical
Published 2005
JESD-609 Code e3
Pbfree Code icon-pbfree yes
Part Status Discontinued
Connector Type PCB CONNECTOR
Number of Rows 1
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating GOLD (30)
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Option GENERAL PURPOSE
Total Number of Contacts 7
Terminal Pitch 2.4892mm
Reach Compliance Code compliant
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.047 inch
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 90°C
Body Breadth 0.094 inch
Contact Gender MALE
Operating Temperature (Min) -25°C
Body Depth 0.906 inch
Rated Current (Signal) 0.5A
Contact Resistance 50mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.098 inch
Termination Type SURFACE MOUNT
Number of Ports 1
Contact Finish Termination Tin (Sn)
Contact Pattern RECTANGULAR
Insulator Color BLACK
Dimensions
Plating Thickness 30u inch
Compliance
RoHS Status RoHS Compliant
