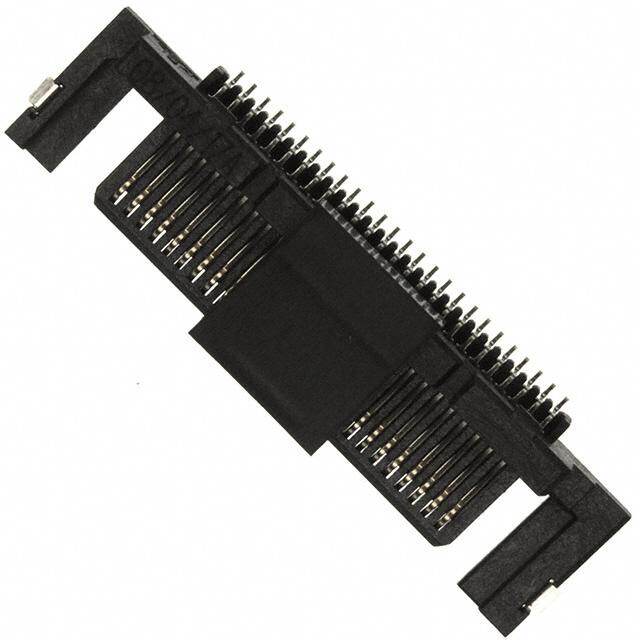

47322-0002
RoHS
/
Package /
Category Connectors, Interconnects / Memory Connectors - PC Card Sockets
Description
CONN PCMCIA CARD PUSH-PULL R/A
PDF
/
Inventory: 6077
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material PHOSPHOR BRONZE
Mounting Type BOARD
Insulation Material LIQUID CRYSTAL POLYMER (LCP)
Mounting Style RIGHT ANGLE
Board Mounting Option LOCATING POSTS
Technical
Published 2006
JESD-609 Code e3
Pbfree Code icon-pbfree yes
Part Status Discontinued
ECCN Code EAR99
Connector Type PCB CONNECTOR
Number of Rows 1
Additional Feature ROHS AND ELV COMPLIANT
HTS Code 8536.69.40.40
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating GOLD (15)
Total Number of Contacts 26
Terminal Pitch 0.9906mm
Reach Compliance Code compliant
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.634 inch
Number Of PCB Rows 1
PCB Contact Pattern RECTANGULAR
Operating Temperature (Max) 85°C
Body Breadth 0.236 inch
Contact Gender MALE
Operating Temperature (Min) -40°C
Rated Current (Signal) 0.75A
Contact Resistance 55mOhm
Insulation Resistance 100000000Ohm
Mating Contact Pitch 0.039 inch
Body/Shell Style RECEPTACLE
Termination Type SURFACE MOUNT
Dielectric Withstanding Voltage 500VAC V
Number of Ports 1
Durability 10000 Cycles
Contact Finish Termination TIN (60)
Contact Pattern RECTANGULAR
Insertion Force-Max 39.1424 N
Withdrawl Force-Min 3.753 N
Dimensions
Plating Thickness 15u inch
Compliance
RoHS Status RoHS Compliant
