2013311-3
RoHS
/
Package /
Category Connectors, Interconnects / Memory Connectors - Inline Module Sockets
Description

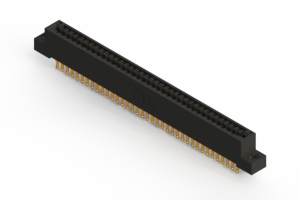

DIMM Connectors SEMI-HARD TRAY DDR3 204P 9.2H RVS Au0.76
PDF
/
Inventory: 2763
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Lifecycle Status ACTIVE (Last Updated: 6 months ago)
Physical
Contact Plating Gold
Mount Surface Mount
Housing Material Thermoplastic
Technical
Published 2011
Part Status Active
Termination SMD/SMT
Connector Type CARD EDGE CONNECTOR
Max Operating Temperature 185°C
Min Operating Temperature -67°C
Number of Rows 2
Voltage - Rated 1.5V
Subcategory Headers and Edge Type Connectors
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Mixed Contacts NO
Option GENERAL PURPOSE
Pitch 609.6μm
Orientation Right Angle
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 8.1788 mm
Number Of PCB Rows 2
Number of Contacts 204
PCB Contact Pattern RECTANGULAR
Contact Gender FEMALE
Housing Color Black
Contact Style BELLOWED TYPE
Insulation Resistance 50000000Ohm
Body/Shell Style SOCKET
ELV Compliant
Polarization Key POLARIZED HOUSING
Memory Type DDR, SDRAM
Durability 50 Cycles
Sealable No
Circuit Application Power
Contact Rating (Current) 500mA
Current Rating (Max) 500mA
Dimensions
Height 9.2mm
Plating Thickness 760 nm
Stack Height 9.1948mm
Compliance
RoHS Status RoHS Compliant
Flammability Rating UL94 V-0
